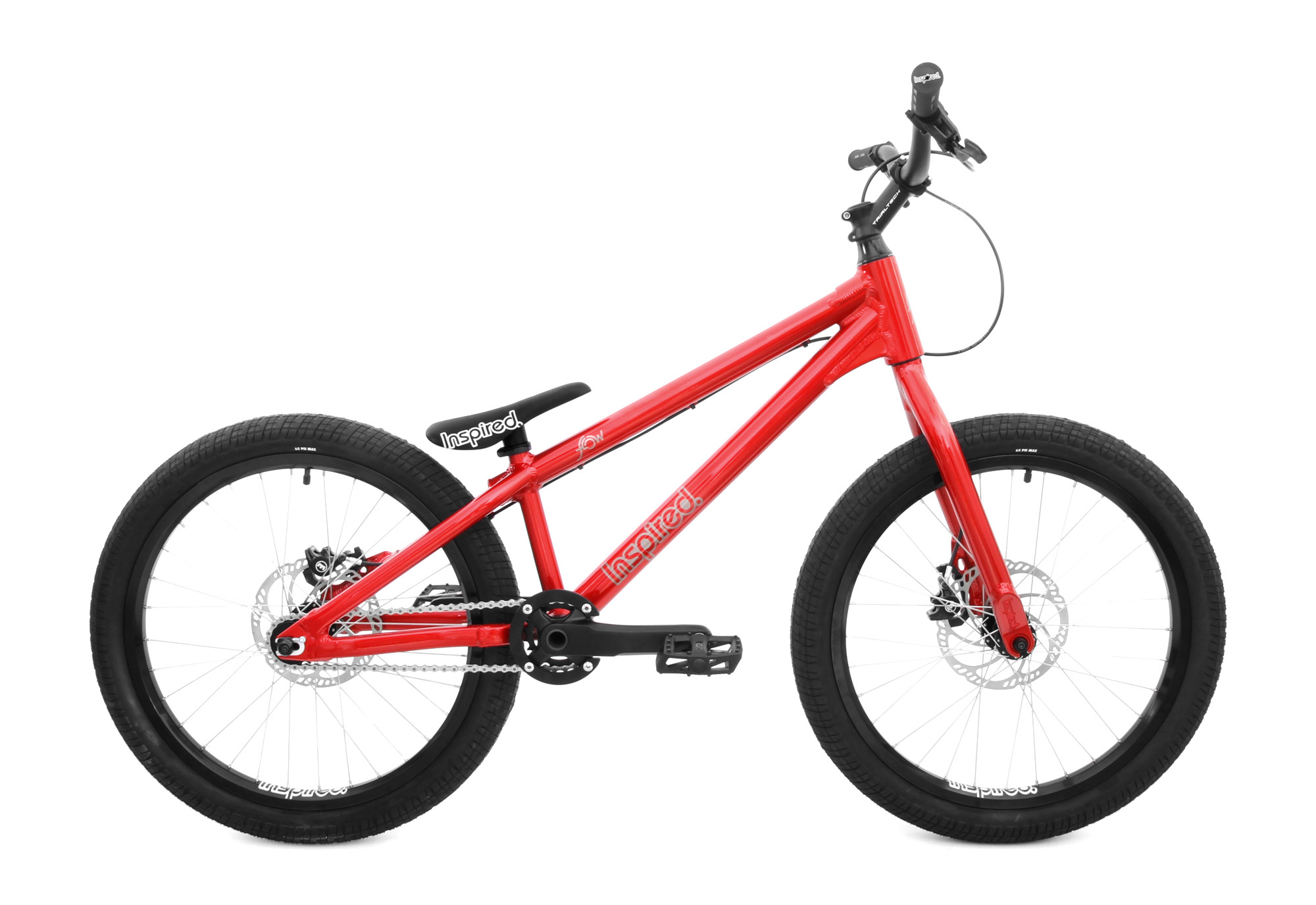

Inspired Flow 22″ Bike

Description

The Inspired Flow 22″ is a versatile street trials bike designed to bridge the gap between 20″ and 24″ wheels. It is an excellent choice for younger riders moving up from a 20″ trials bike, as well as taller riders who prefer the compact and agile handling of a smaller wheel size.

Designed for both learning and advanced street trials, the Flow 22″ combines responsive handling with enough stability to help riders develop their skills. Its compact geometry, short chainstays, 73° head angle, and short fork offset create a lively and precise feel when riding on either wheel, while the moderate bottom bracket rise and generous reach add stability.

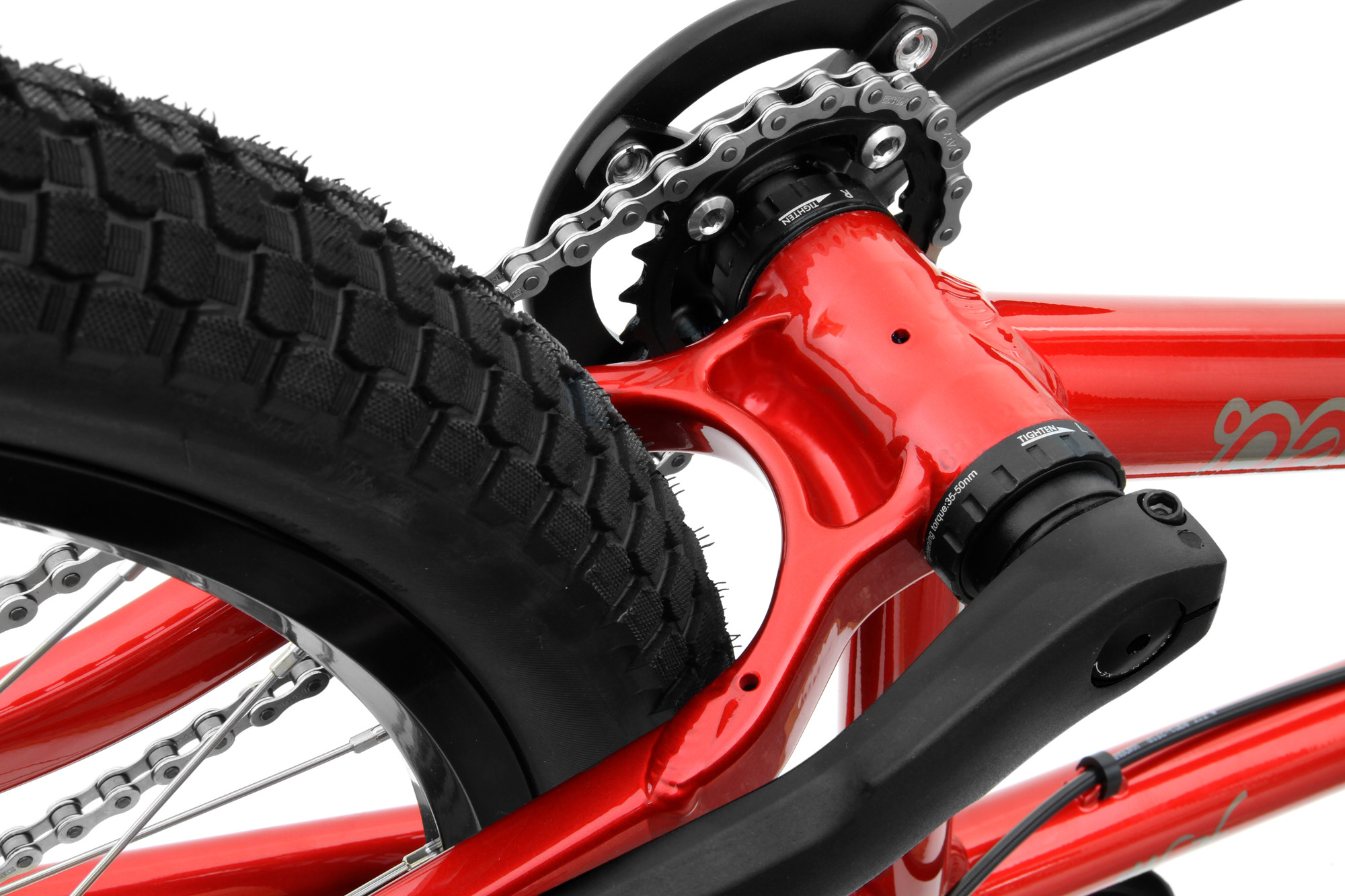

The frame is manufactured from high-quality 6061-T6 aluminium and features full-size tubing, a reinforced downtube gusset, and a custom one-piece forged bottom bracket yoke. The yoke is shaped to provide clearance for the 22-tooth front chainring while maintaining a strong and rigid chassis.

The 6061 aluminium Flow V2 fork uses oversized legs for increased durability and custom forged dropouts. A screw-in top cap also allows the front brake hose to be routed internally through the steerer for a clean cockpit setup.

The rear triangle is specifically designed around the standard 22:16 gearing. Compact horizontal dropouts and custom forged aluminium chain tugs provide a neat and secure wheel adjustment system. Both frame and fork use CNC-machined disc brake mounts, allowing the bike to be upgraded as the rider progresses, with a maximum rotor size of 185mm.

The component specification has been carefully selected to provide reliable performance without compromising the bike’s entry-level positioning. The bike features an Inspired Flow riser handlebar, Trialtech forged stem, Inspired Flow Plus 2-piece cranks, sealed bottom bracket, KMC chain, Wellgo platform pedals, and Flow chain tugs.

Braking is provided by Avid BB5 mechanical disc brakes with 180mm rotors, while the wheelset combines double-wall Inspired 22″ rims with sealed-bearing Trialtech disc hubs and Inspired Street 22″ tyres.

• 22″ street trials bike designed between 20″ and 24″ wheel sizes
• Suitable for riders approximately 1.35m to 1.55m tall
• Lightweight and durable 6061-T6 aluminium frame
• 6061 aluminium Flow V2 alloy fork with oversized legs
• Responsive 73° head angle and compact geometry
• Short chainstays for agile handling
• Moderate +15mm bottom bracket height for a balanced ride
• 22:16 gearing supplied as standard
• Custom forged aluminium chain tugs
• CNC-machined disc brake mounts
• Maximum rotor size: 185mm
• Internal brake hose routing through the fork steerer
• Inspired Flow Plus 2-piece alloy crankset
• Trialtech sealed-bearing disc hubs
• Inspired Flow 22″ double-wall rims
• Inspired Street 22″ x 2.3″ tyres
• Avid BB5 disc brakes with 180mm rotors
• Gloss Metallic Red frame
• Approximate weight: 10.79kg including pedals and Magura MT4 brakes

Frame Specifications

• Frame: Inspired Flow 22″, 6061-T6 aluminium alloy
• Rear dropout spacing: 135 x 10mm
• Bottom bracket: 73mm BSA
• Headset: ZS44 internal
• Seat tube diameter: 25.4mm
• Rear brake mount: +20mm IS

Fork Specifications

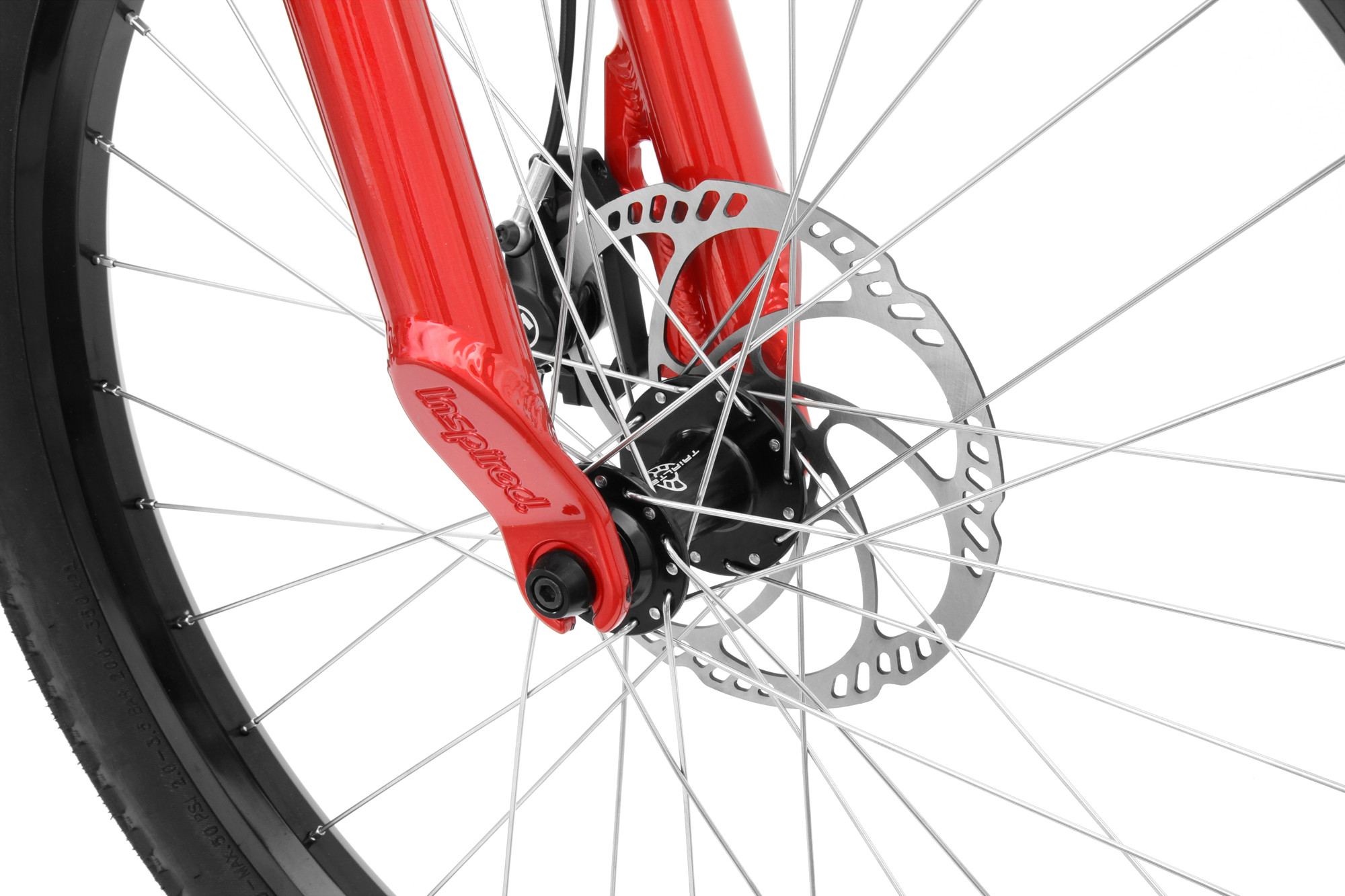

• Fork: Inspired Flow 22″ Alloy
• Steerer: 1 1/8″
• Front dropout spacing: 100 x 10mm
• Brake mount: IS
• Screw-in top cap for centre-routed brake hose

Brakes

• Avid FR5 lever and BB5 caliper
• 180mm Avid G2 rotors
• Optional Magura MT4 upgrade with 180mm Storm HC rotors
• Optional Hope Tech 4 EVO Trial Zone upgrade with 180mm Trial Zone V2 rotors
• Optional Magura MT7 HC3 upgrade with 180mm Storm HC rotors

Drivetrain

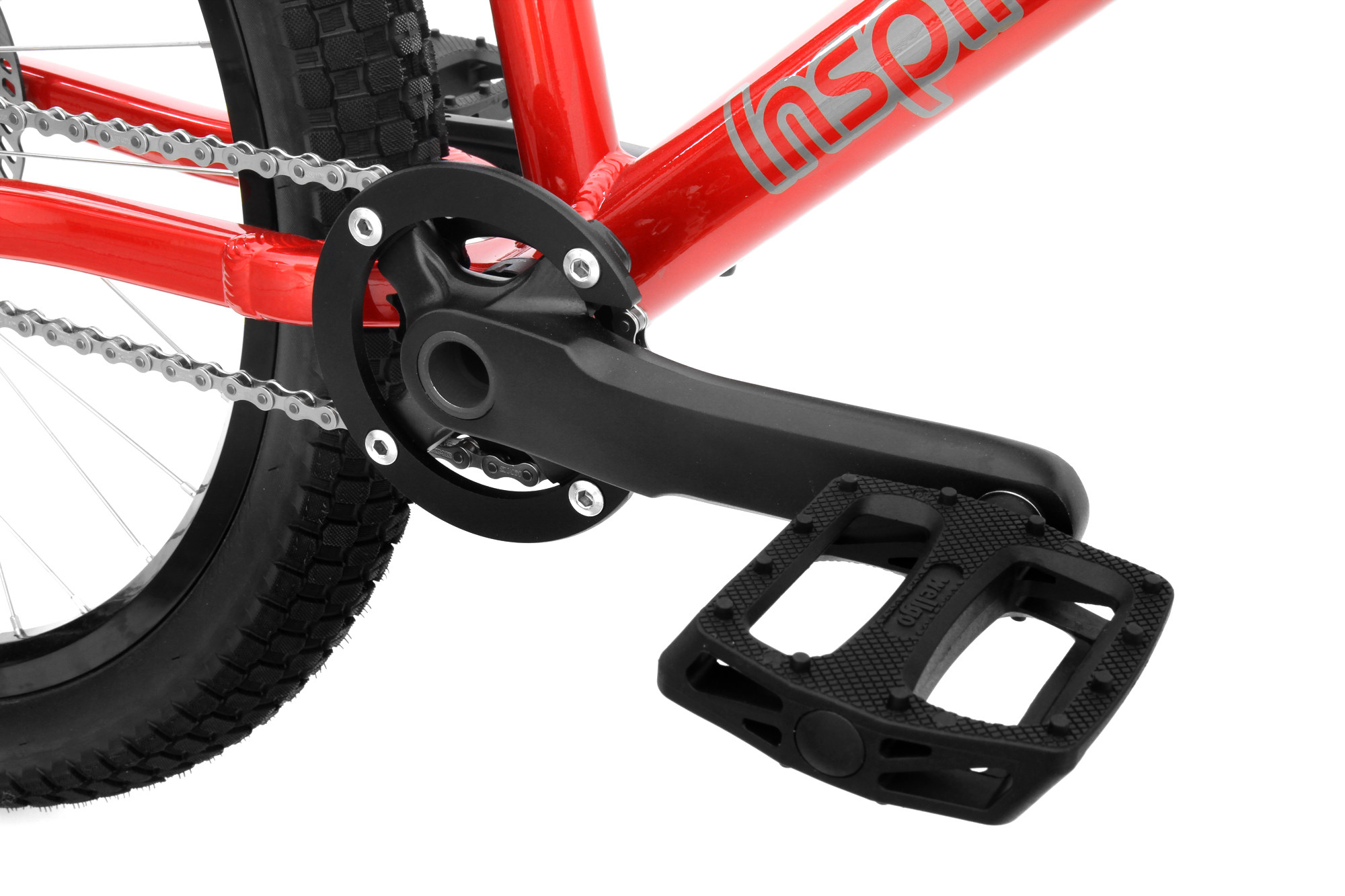

• Cranks: Inspired Flow Plus
• Front sprocket: Inspired 22T
• Chain: KMC S1
• Freewheel: Trialtech 16T, 36 engagement
• Pedals: Wellgo Nylon Platform
• Bottom bracket: Inspired Flow Plus 24mm sealed bearing
• Bashring: Inspired 4-bolt
• Chain tensioner: Flow Chain Tug

Wheels

• Front hub: Trialtech Disc, 100mm, 32H, sealed bearings

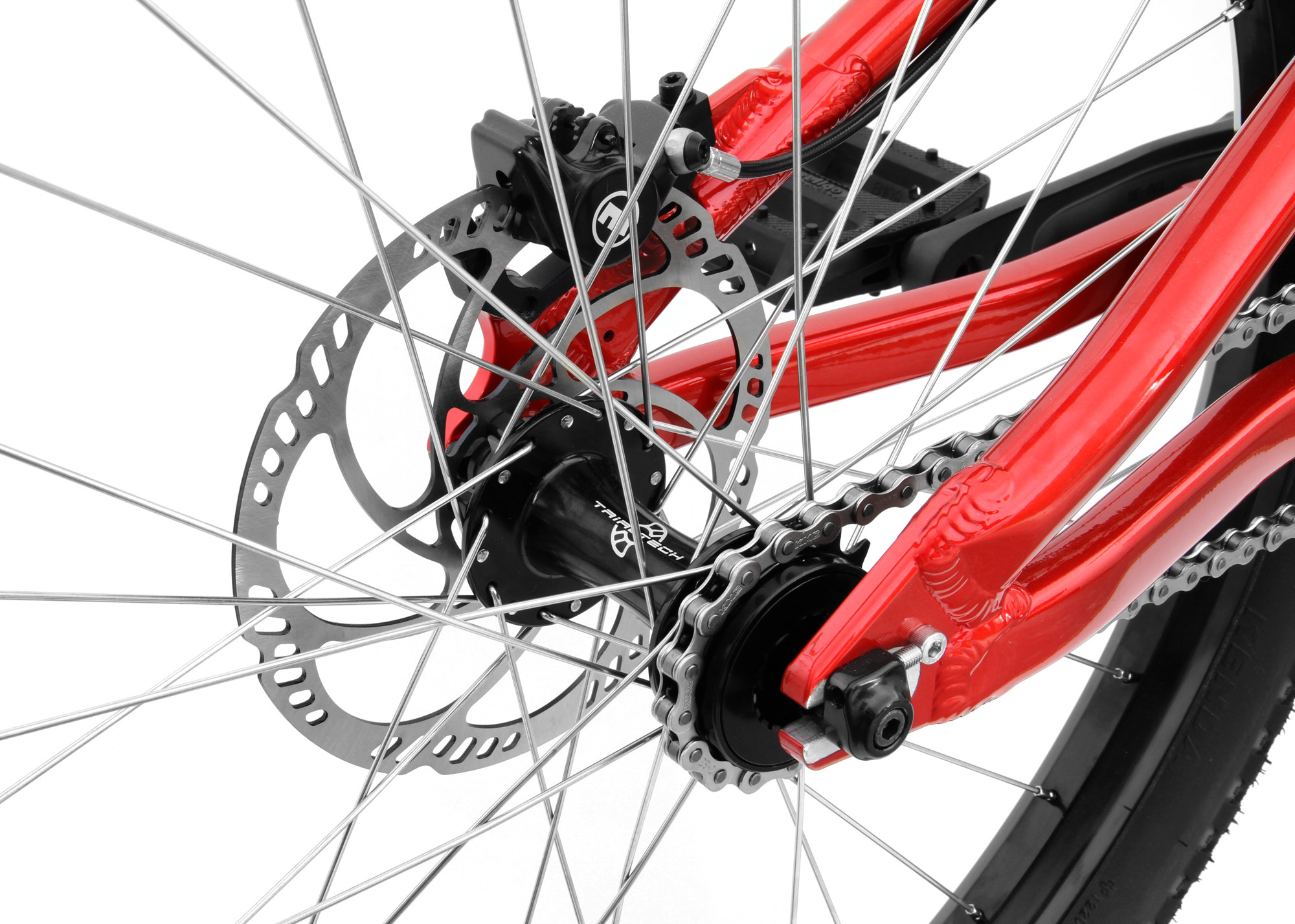

• Rear hub: Trialtech Disc, 135mm, 32H, sealed bearings
• Rims: Inspired Flow 22″
• Spokes: Stainless PG
• Tyres: Inspired Street 22″ x 2.3″

Cockpit & Seating

• Headset: Trialtech 44mm Internal, 1 1/8″

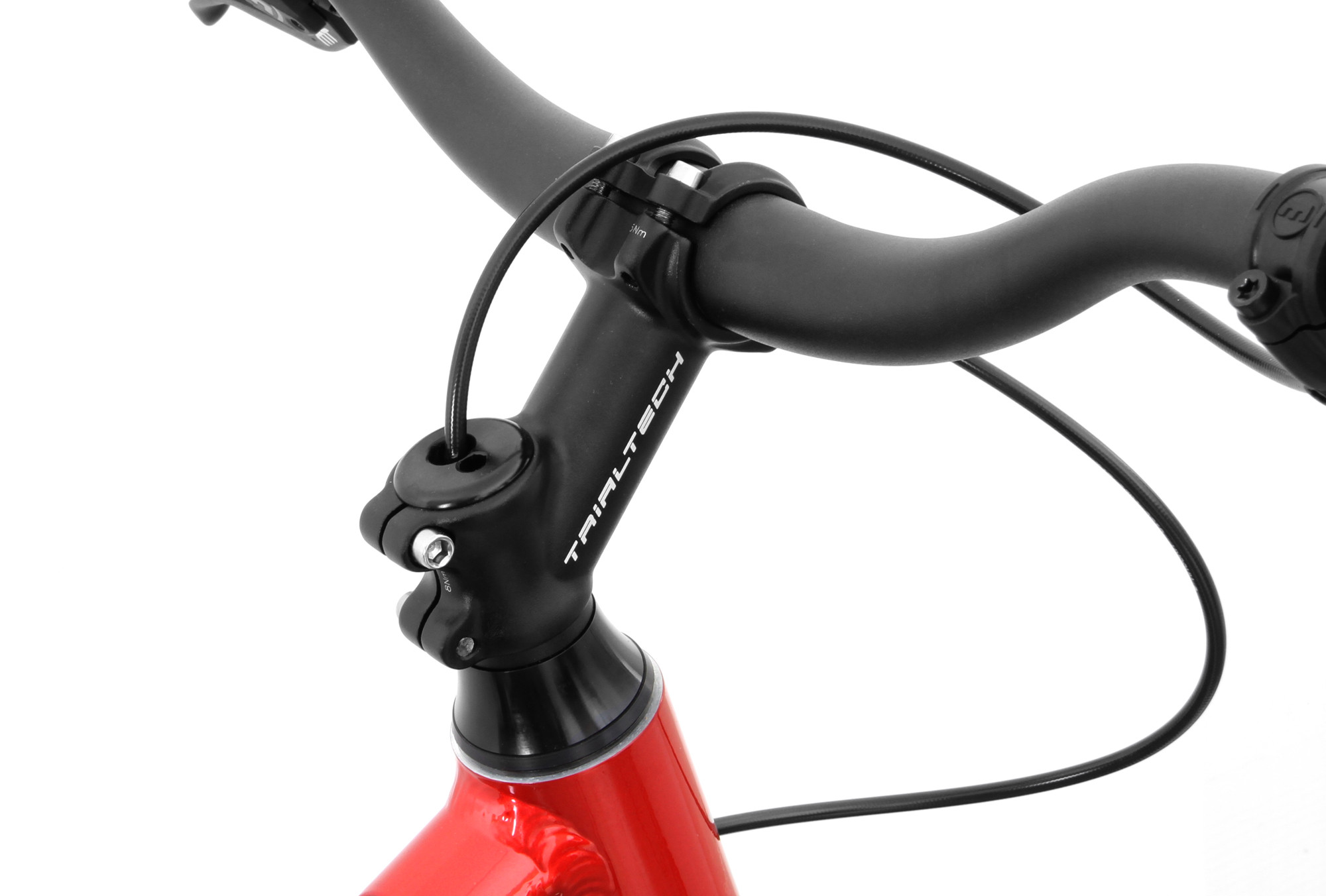

• Stem: Trialtech Forged, 90mm, 35°

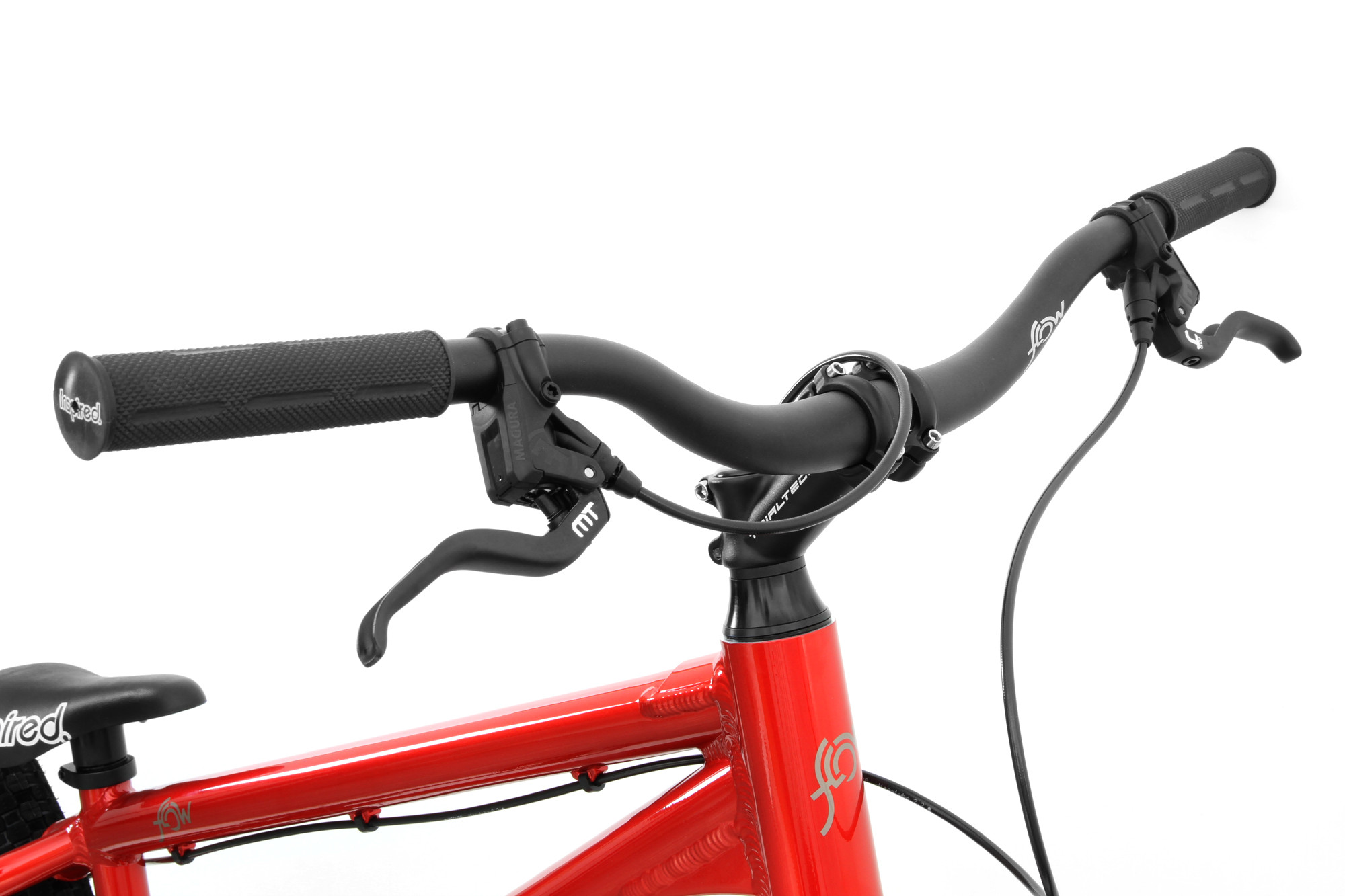

• Handlebar: Inspired Flow Riser
• Grips: Inspired Rubber

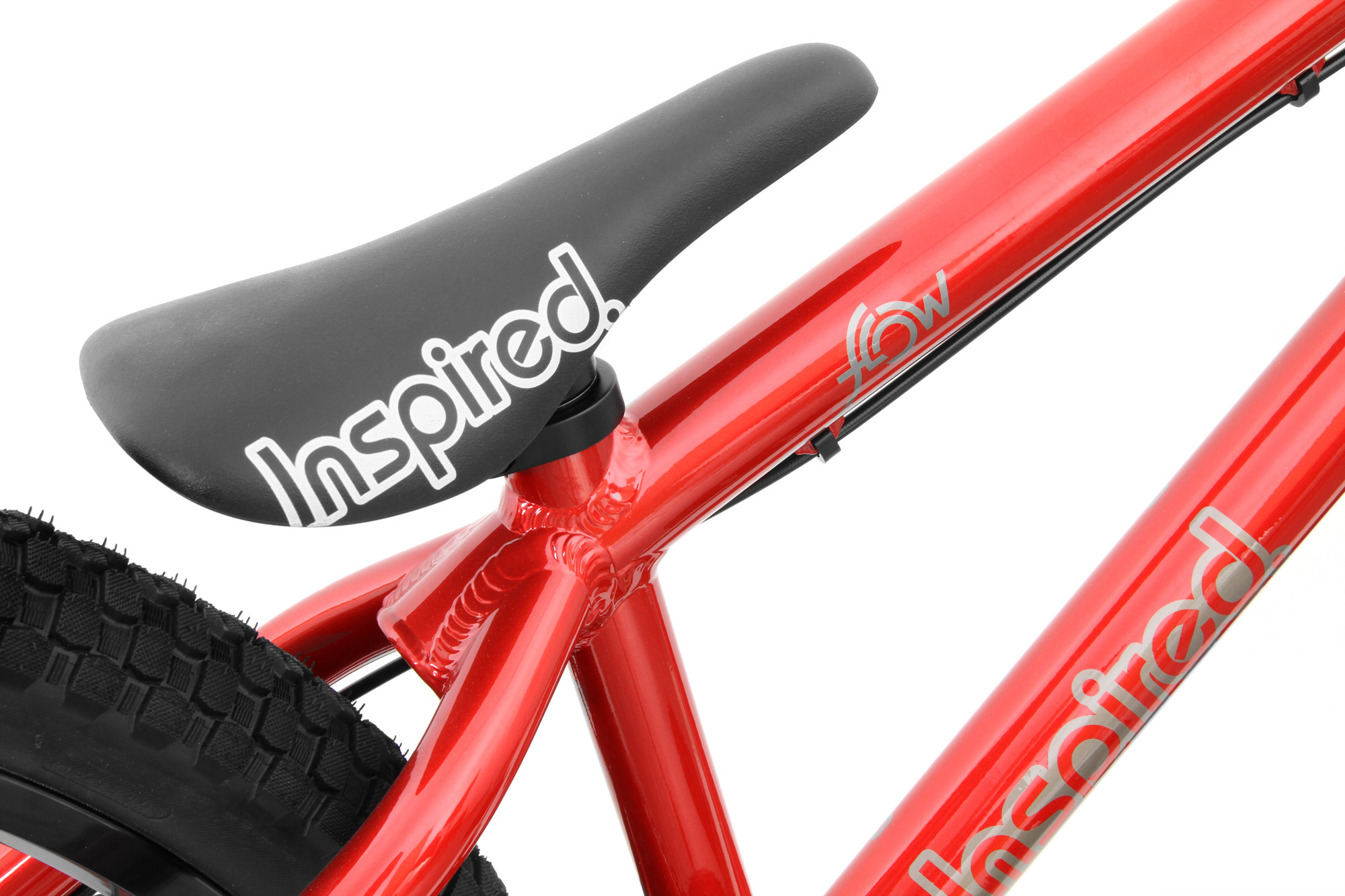

• Integrated saddle and alloy seatpost
• Seat clamp: Inspired 28.6mm

Geometry

• Wheelbase: 905mm
• Chainstay: 337mm
• Bottom bracket height: +15mm
• Head angle: 73°

Colour: Gloss Metallic Red

Suggested rider height: 1.35m–1.55m

The Inspired Flow 22″ offers a unique combination of compact handling, stability, and durable components, making it an excellent platform for learning street trials while retaining the performance needed as riding skills progress.
