Inspired Fourplay Fuse 24″ Bike

Description

The Inspired Fourplay Fuse 24″ is a high-quality street trials bike built around Inspired’s proven Fourplay frame and fork platform. Combining a lightweight aluminium chassis with carefully selected Inspired and Trialtech components, the Fourplay Fuse offers responsive handling, excellent durability, and a high level of equipment straight out of the box.

The Fourplay’s compact geometry is designed for precise and agile street riding. Short chainstays and a low bottom bracket help make the bike highly maneuverable, while the reinforced and butted aluminium frame provides the strength needed for demanding trials use. External gussets around the top and down tube junctions further reinforce the front of the frame.

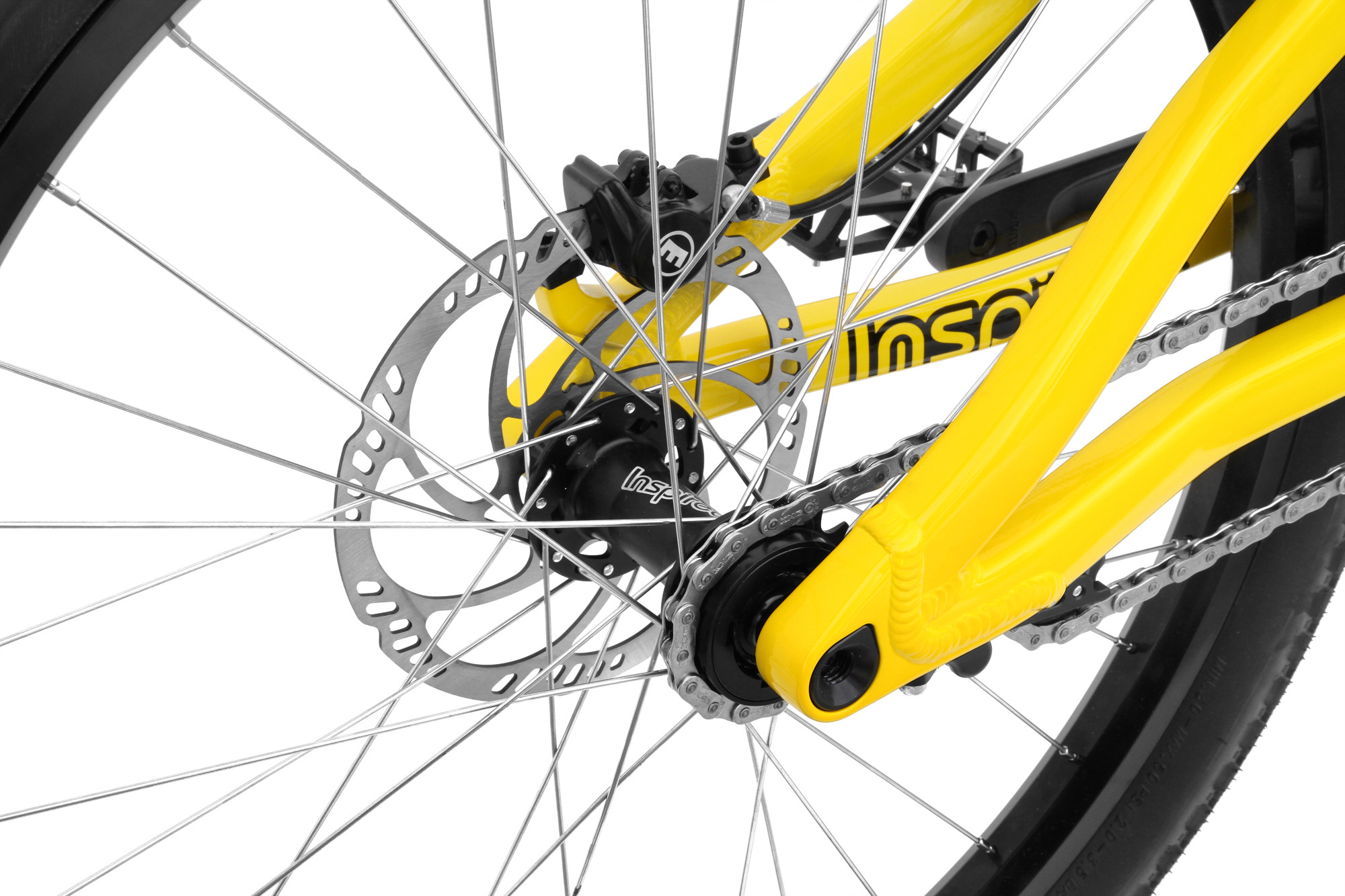

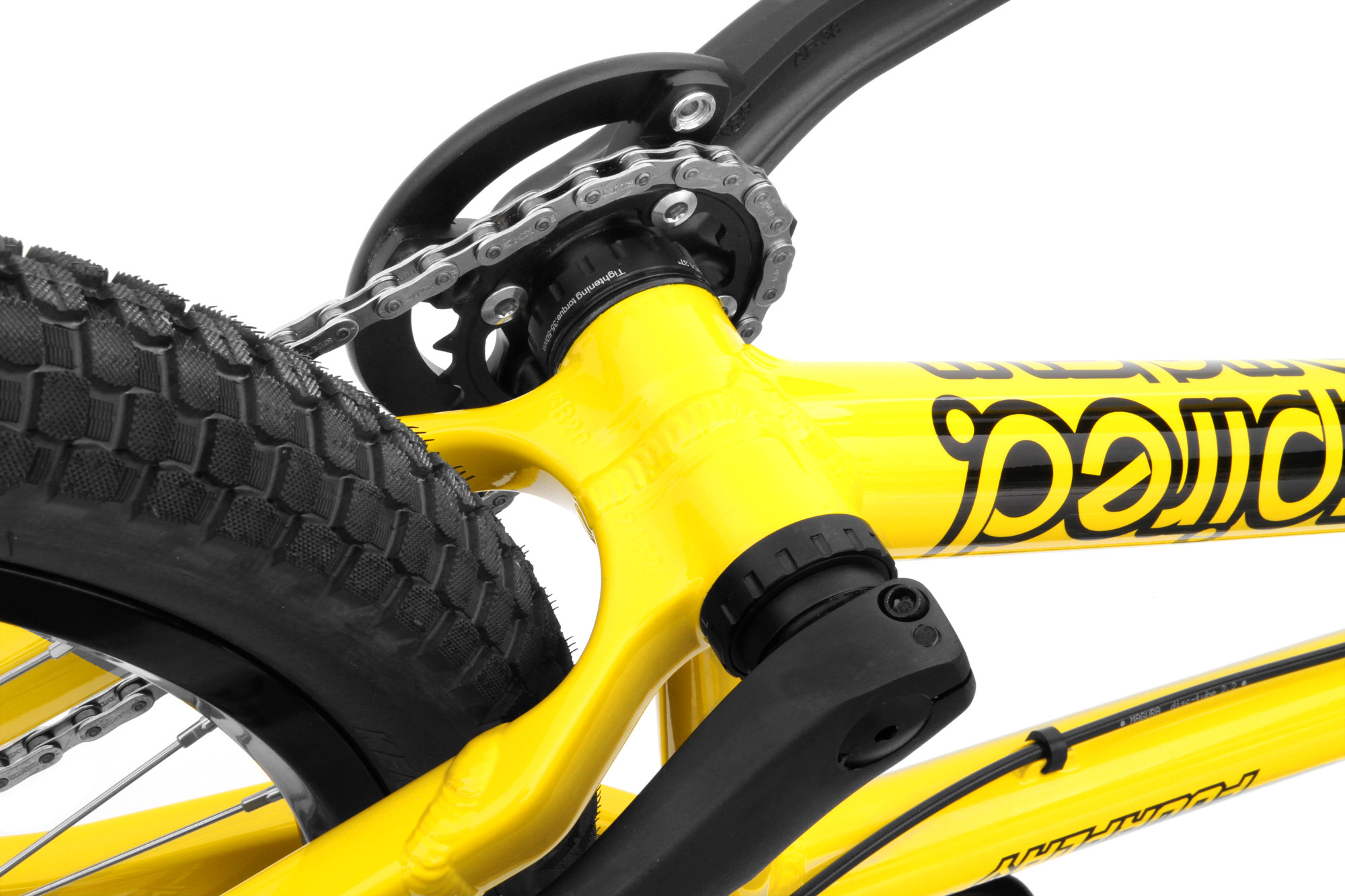

The custom hollow chainstay and bottom bracket construction increases stiffness and tyre clearance while removing unnecessary material to keep weight under control. A 12mm bolt-through rear axle locates securely into the tapered frame inserts, providing a solid connection between the wheel and frame.

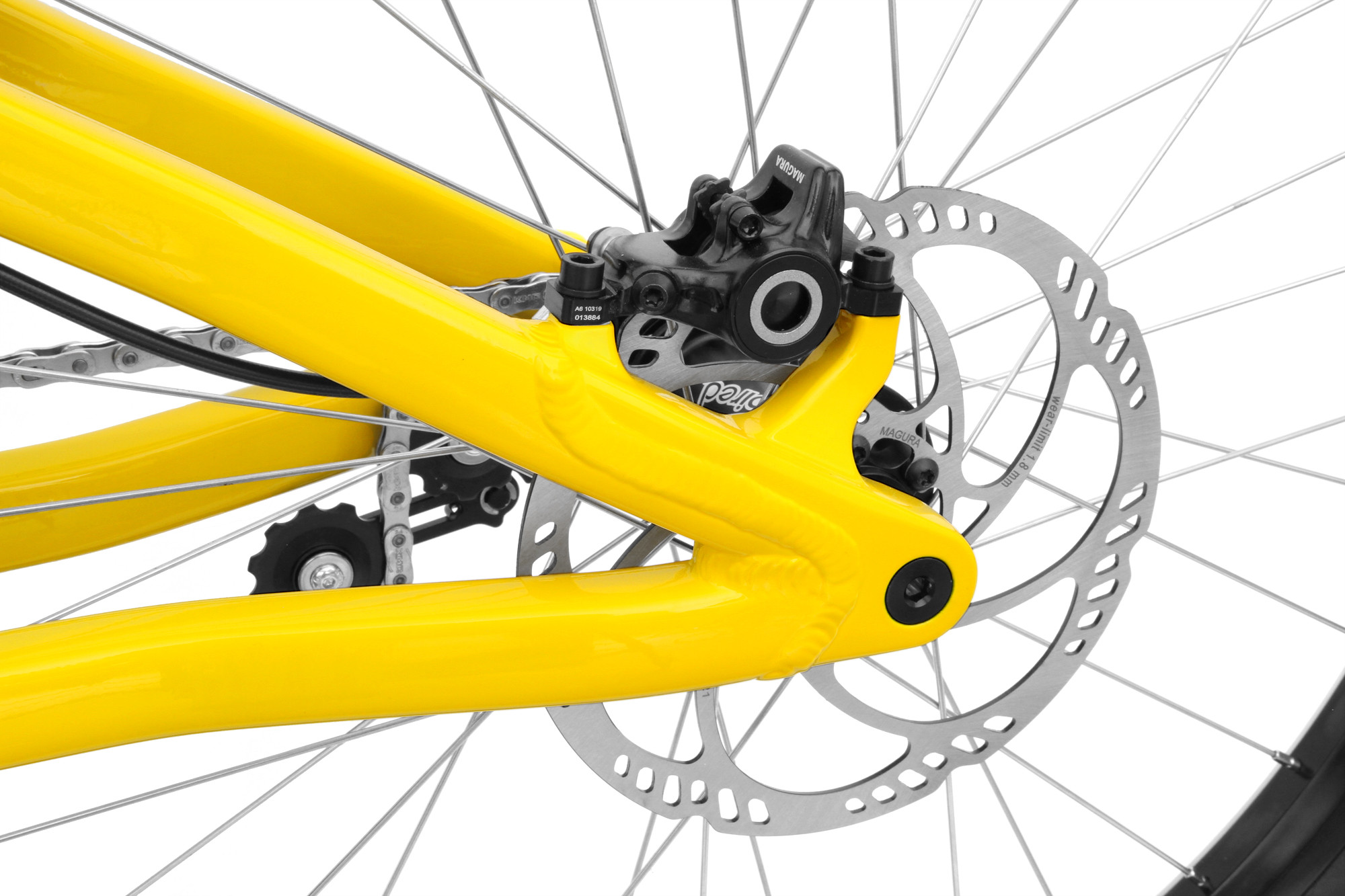

Both the frame and fork use reinforced 180mm Post Mount brake interfaces. The rear brake mount is integrated into the dropout assembly for improved alignment and strength without requiring an additional brake adapter.

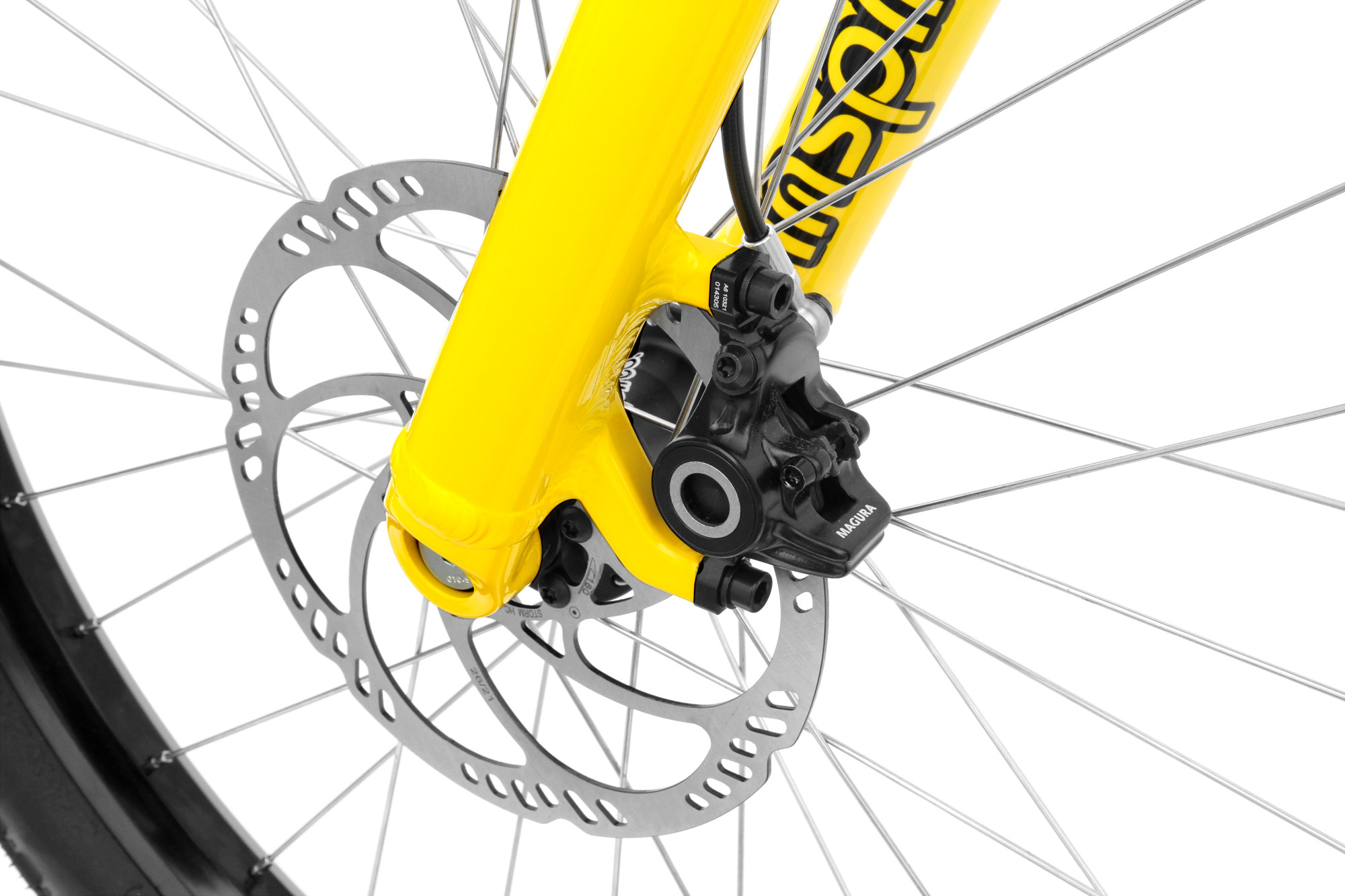

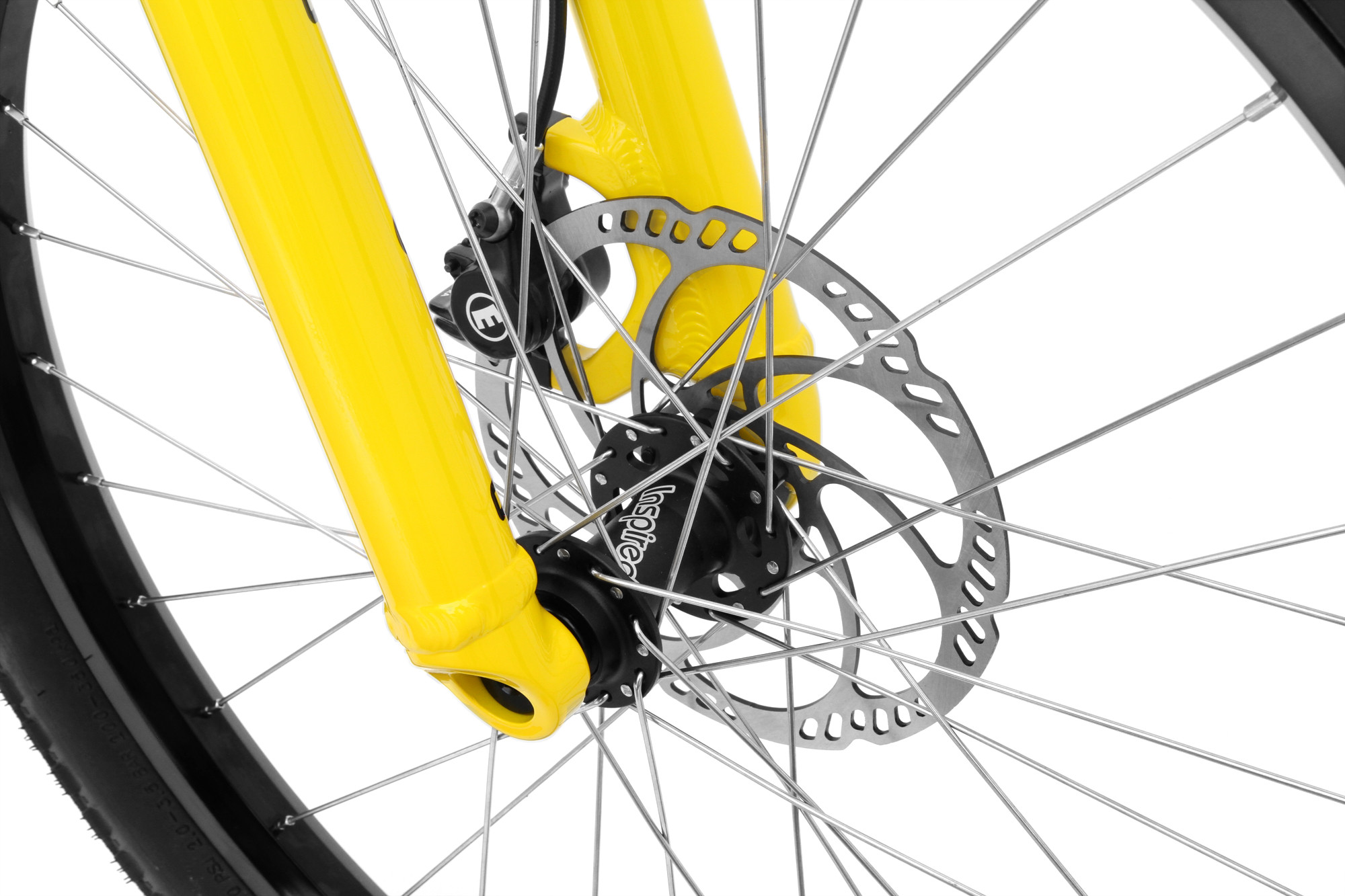

The Inspired Fourplay fork features a tapered steerer and lightweight reinforced crown design. Its 15mm bolt-through axle provides a stiff and secure front wheel connection, while the countersunk axle arrangement keeps the hardware neatly tucked away. Increased clearance around the fork crown also makes routing the front brake hose through the steerer possible when used with the compatible screw-in top cap.

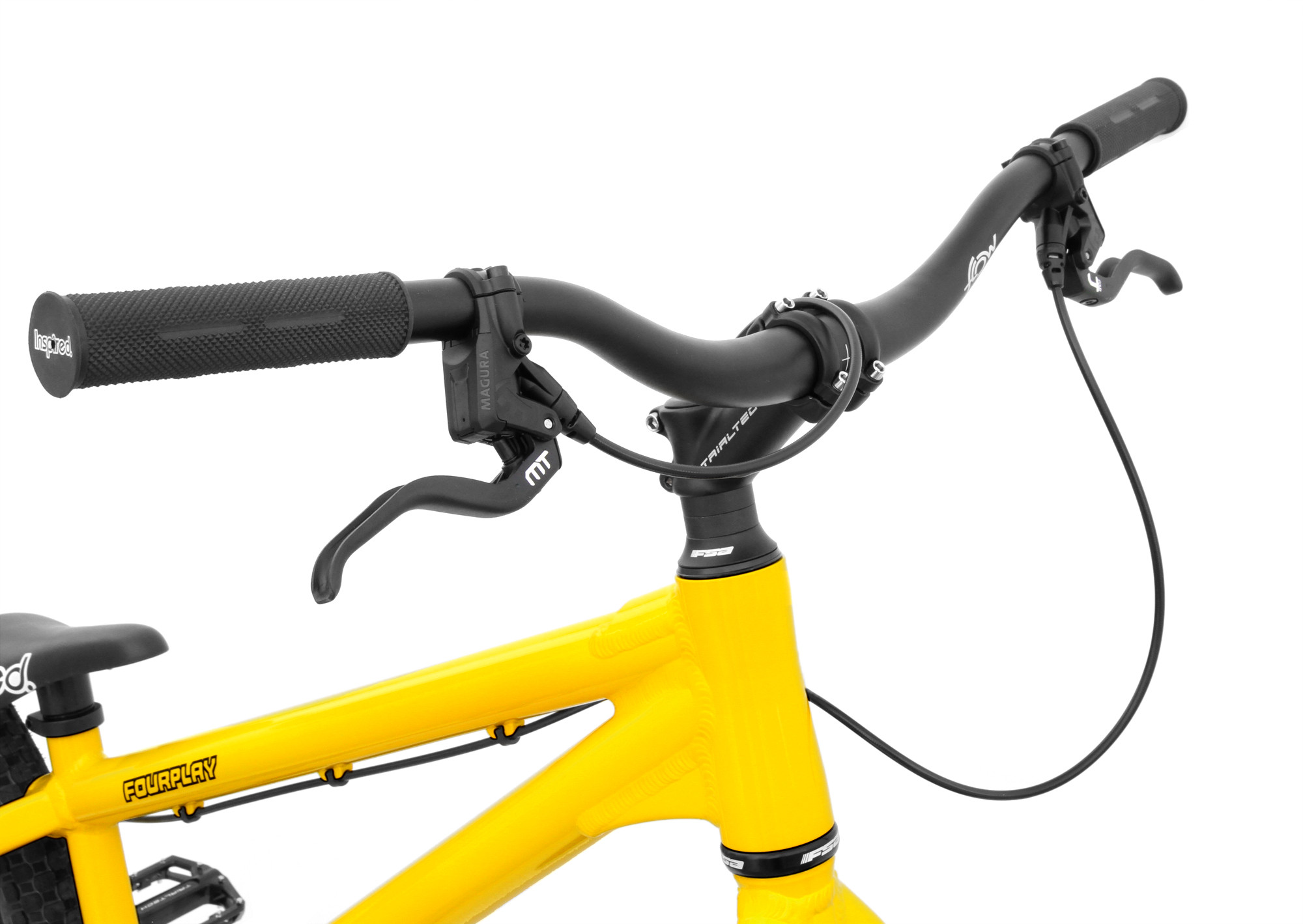

The complete bike combines an Inspired Flow riser handlebar, Trialtech stem, Inspired two-piece crankset, KMC chain, Trialtech pedals, and Avid BB5 disc brakes. Inspired double-wall rims are paired with smooth-running Inspired disc hubs to create a strong and dependable wheelset.

The standard specification can also be upgraded with premium Magura or Hope brake systems for riders looking for increased braking performance.

• Inspired Fourplay 24″ street trials frame and fork
• 6066-T6 aluminium alloy frame in Gloss Yellow
• Compact geometry for agile and responsive street riding
• Reinforced front triangle with butted tubing and external gussets
• Custom hollow chainstay and bottom bracket construction
• 12mm bolt-through rear axle
• Reinforced 180mm Post Mount disc brake interfaces
• Inspired Fourplay tapered fork with 15mm bolt-through axle
• Inspired and Trialtech component specification
• Inspired Flow Plus 175mm cranks with 22T front sprocket
• Trialtech Sport 16T rear sprocket with 36 engagement points
• KMC Z1eHX-N chain
• Trialtech Race Platform pedals
• Inspired Flow 24″ double-wall rims
• Inspired Disc V2 front and rear hubs
• Kenda K-Rad 24″ x 2.5″ tyres
• Avid BB5 mechanical disc brakes with 180mm rotors
• Inspired Flow riser handlebar and Trialtech 90mm stem

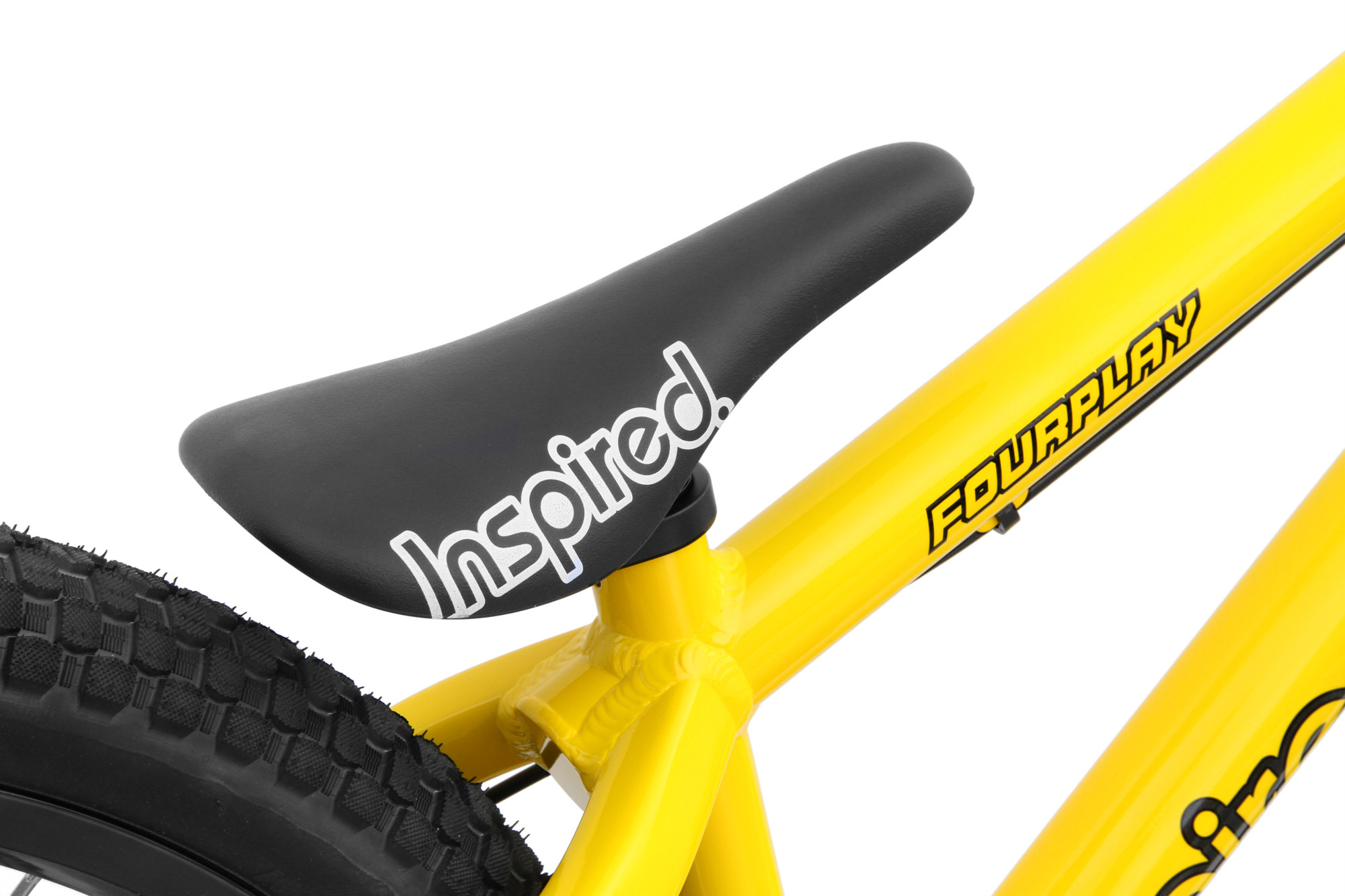

• Integrated Inspired saddle and alloy seatpost
• Gloss Yellow frame and colour-matched fork
• Suggested rider height: 1.55m to 1.95m

Brake Upgrade Options

The Fourplay Fuse can also be specified with upgraded braking systems for riders who want additional braking performance:

• Magura MT4 with 180mm Storm HC rotors
• Magura MT7 HC3 with 180mm Storm HC rotors
• Hope Tech 4 EVO Trial Zone with 180mm Trial Zone V2 rotors

Frame Specifications

• Material: 6066-T6 aluminium alloy
• Rear axle: 135 x 12mm
• Bottom bracket: 73mm BSA
• Headset: ZS44 upper / EC44 lower
• Seat tube diameter: 27.2mm
• Rear brake mount: 180mm Post Mount

Fork Specifications

• Steerer: 1 1/8″ to 1.5″ tapered
• Front axle: 100 x 15mm
• Brake mount: 180mm Post Mount
• Fork colour: Gloss Yellow

Drivetrain

• Crankset: Inspired Flow Plus, 175mm
• Front sprocket: Inspired 22T
• Rear sprocket: Trialtech Sport 16T, 36 engagement
• Chain: KMC Z1eHX-N
• Bottom bracket: Inspired Flow Plus 24mm sealed bearing
• Bashring: Inspired 4-bolt
• Chain tensioner: Trialtech Team Sprung

Wheelset

• Front hub: Inspired Disc V2, 100mm, 32H, 15mm bolt-through
• Rear hub: Inspired Disc V2, 135mm, 32H, 12mm bolt-through
• Rims: Inspired Flow 24″, 32H
• Tyres: Kenda K-Rad 24″ x 2.5″

Geometry

• Wheelbase: 994mm
• Chainstay length: 362mm
• Bottom bracket height: +10mm
• Head angle: 73°

Steering & Contact Points

• Headset: FSA, 1 1/8″ integral upper / 1.5″ standard lower
• Stem: Trialtech Forged, 90mm, 35°
• Handlebar: Inspired Flow Riser
• Grips: Inspired Rubber
• Saddle: Inspired Integrated
• Seatpost: Inspired Integrated Alloy
• Seat clamp: Inspired 31.8mm

Colour: Gloss Yellow

Weight: To be confirmed.

The Inspired Fourplay Fuse is a complete street trials bike for riders who want a responsive, strong, and well-equipped machine without having to build the bike from individual components.
