Description

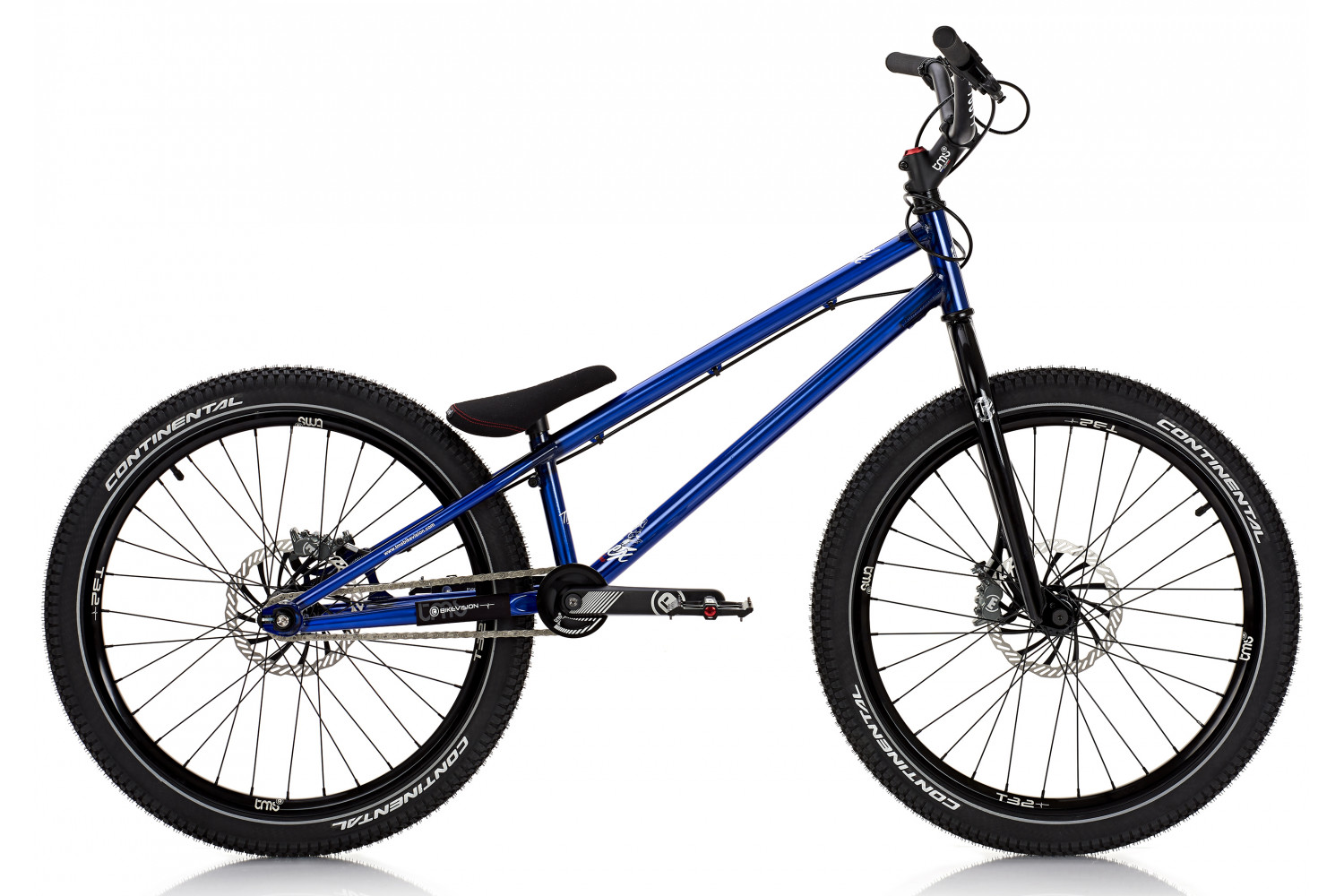

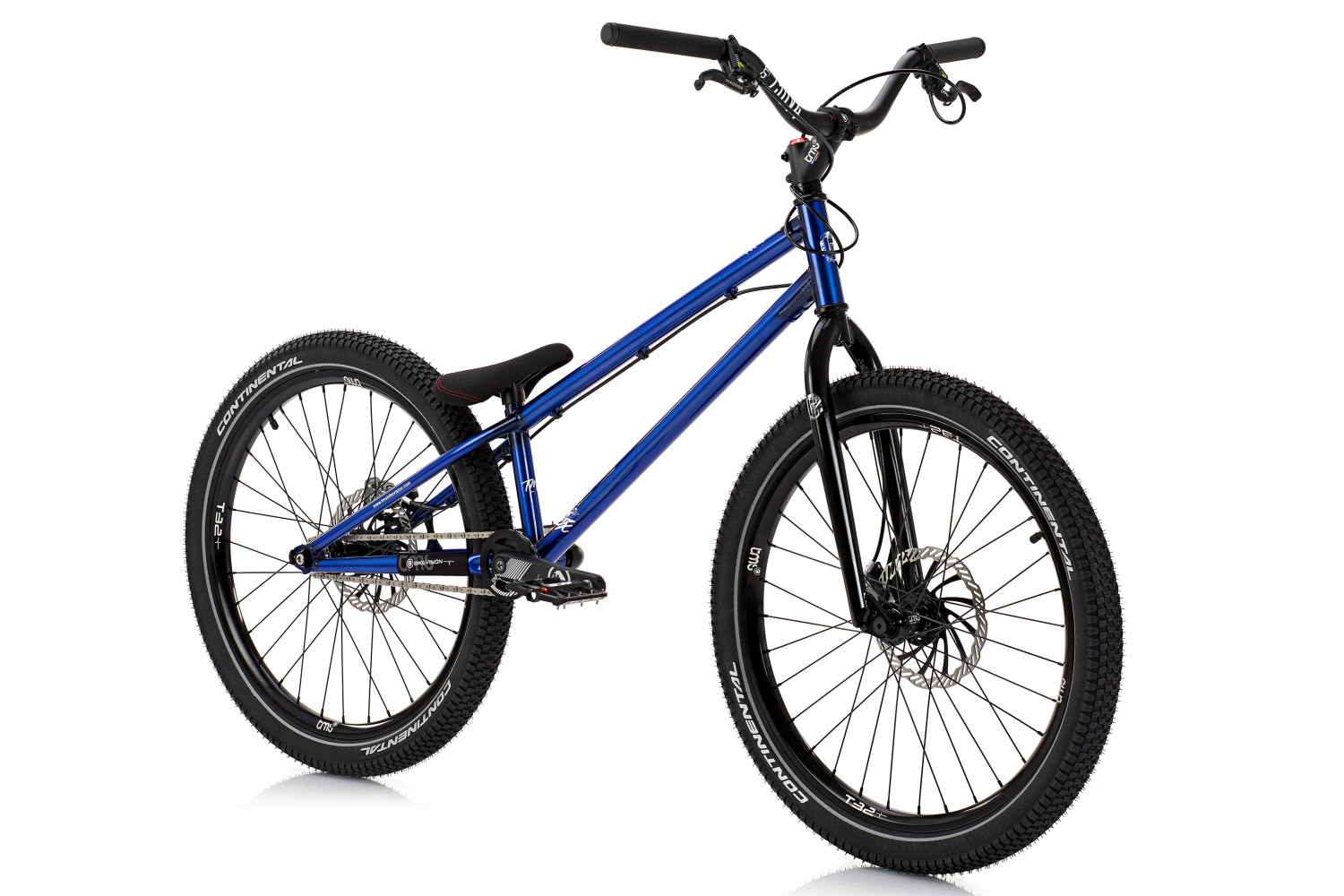

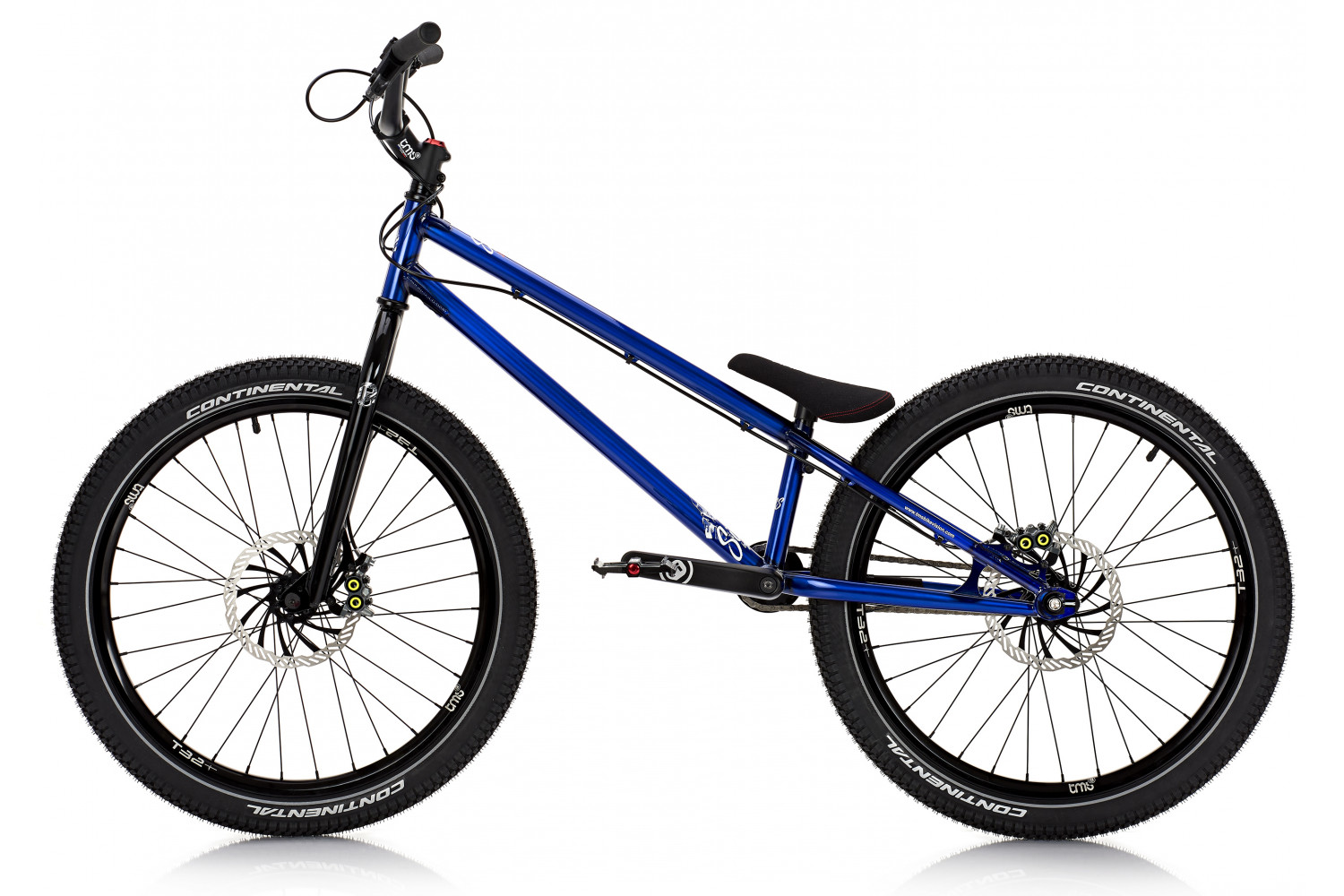

The TMS Silex V4 24” Team Bike represents the top evolution of TMS’s legendary street-trials platform — designed in France and built for elite performance. Crafted from premium chromoly steel, it offers the perfect blend of strength, comfort, and responsiveness. The Silex V4 is versatile across every riding environment — from street and skatepark to natural terrain and pump tracks.
Steel’s natural compliance absorbs surface imperfections for fluid, controlled riding, while allowing thinner tubes for a lighter overall build. The result is a clean, elegant frame with exceptional balance and control.
Its Deep Blue clearcoat finish reveals the heat-tempered steel tones beneath, paired with tattoo-style graphics created by rider Yann Dunant — making each frame visually unique.
The Silex V4 Team edition offers unmatched performance, precision, and aesthetics — setting the benchmark in the street-trials world.
Key Features

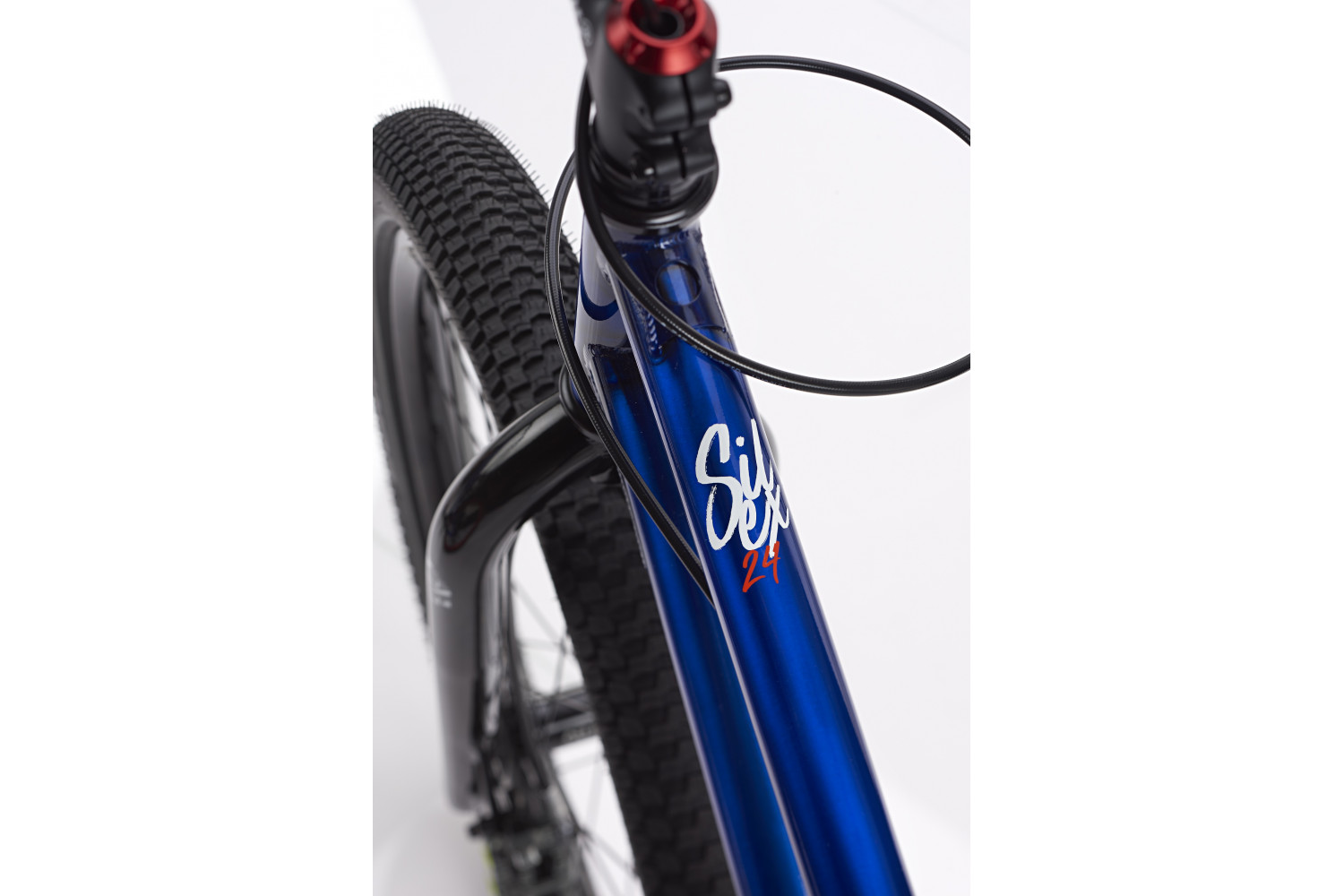

Frame
- Chromoly steel construction – optimal strength-to-weight ratio
- Reinforced 6mm dropouts for added rigidity
- Integrated seat tube clamping with twin inserts (no weak points)
- Double-polished welds at head tube
- Euro 68mm (BSA 1.375 BC.24T) bottom bracket shell
- Rear hub spacing: 135mm
- Reinforced rear brake mount
- Color: Clearcoat Raw Deep Blue
Fork
- 24″ chromoly alloy fork
- Length: 400mm | Pivot: 220mm | Offset: 30mm
- IS160mm disc mount
- 15mm thru axle (new design)
- Color: glossy black

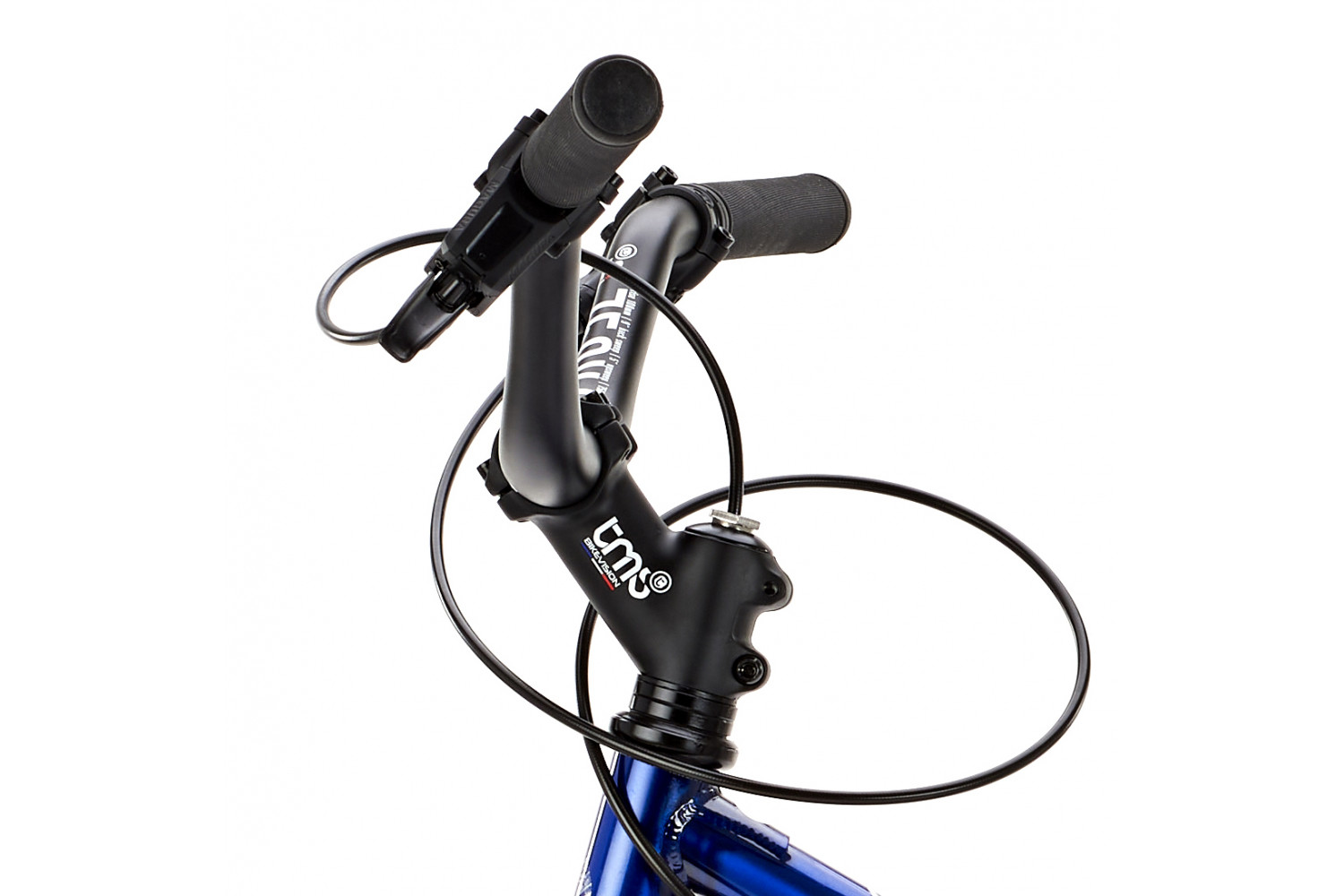

Cockpit
- Headset: 1-1/8” external type
- Stem: TMS 80×40°
- Handlebars: TMS 750 V4 (new design)
- Grips: extra-long, thin black rubber

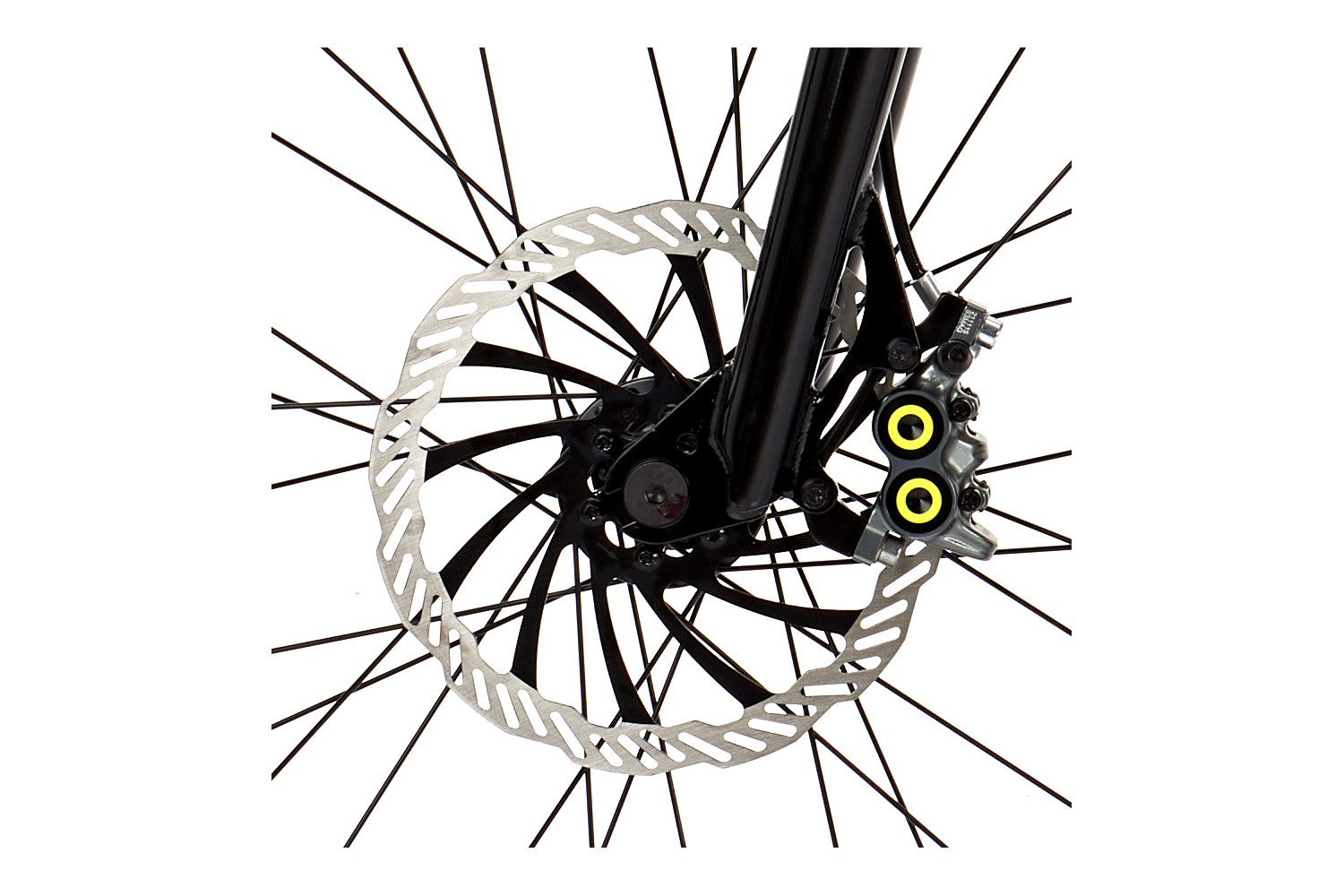

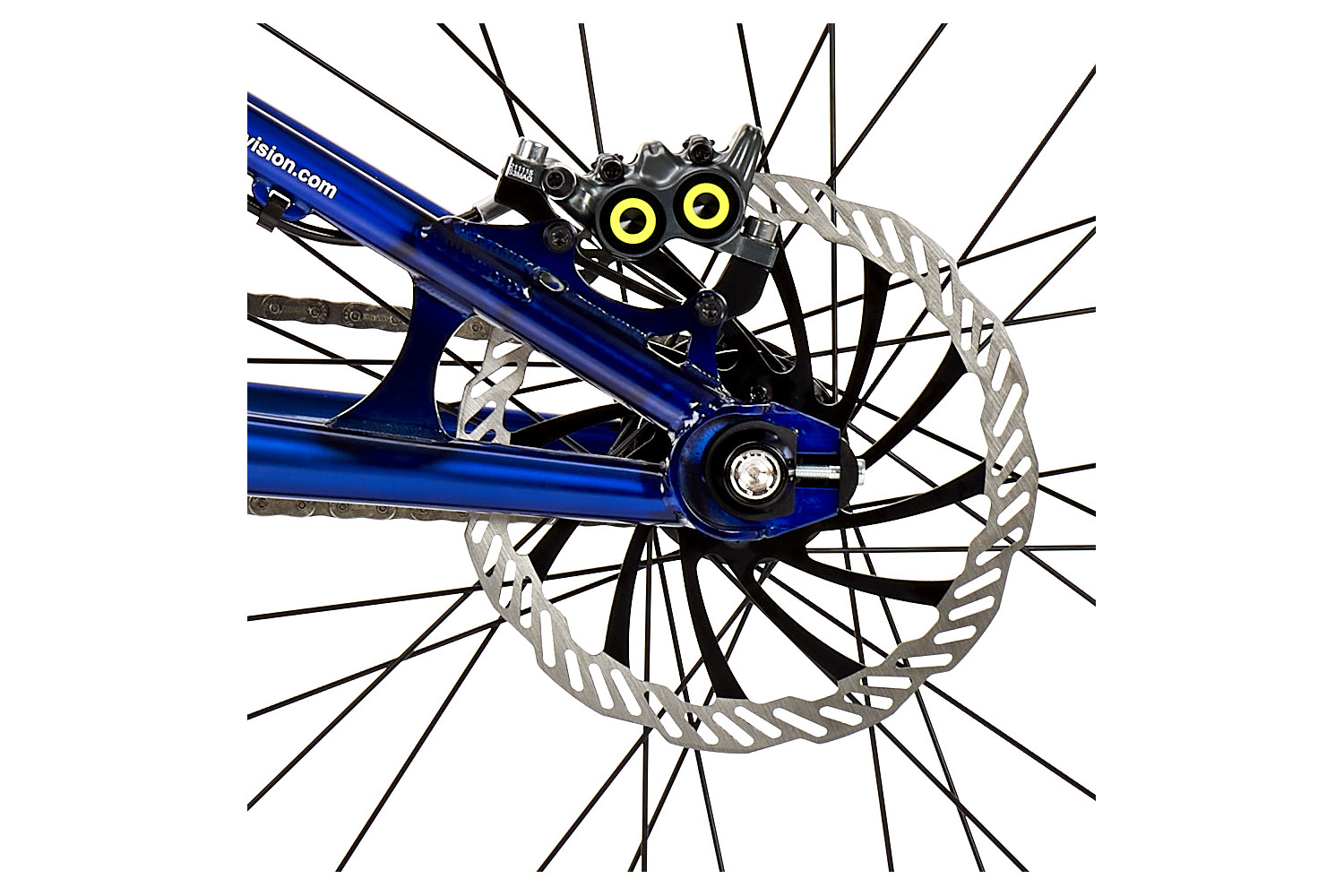

Brakes (depending on variant)
- Without Brakes – supplied with ISR180 adapter (no discs)
- Magura MT5 – powerful 4-piston brake with aluminum lever and performance pads
- Magura MT7 – Magura’s most powerful 4-piston brake setup for maximum stopping power
- Discs: TMS 180mm
- Adapters: ISR 180

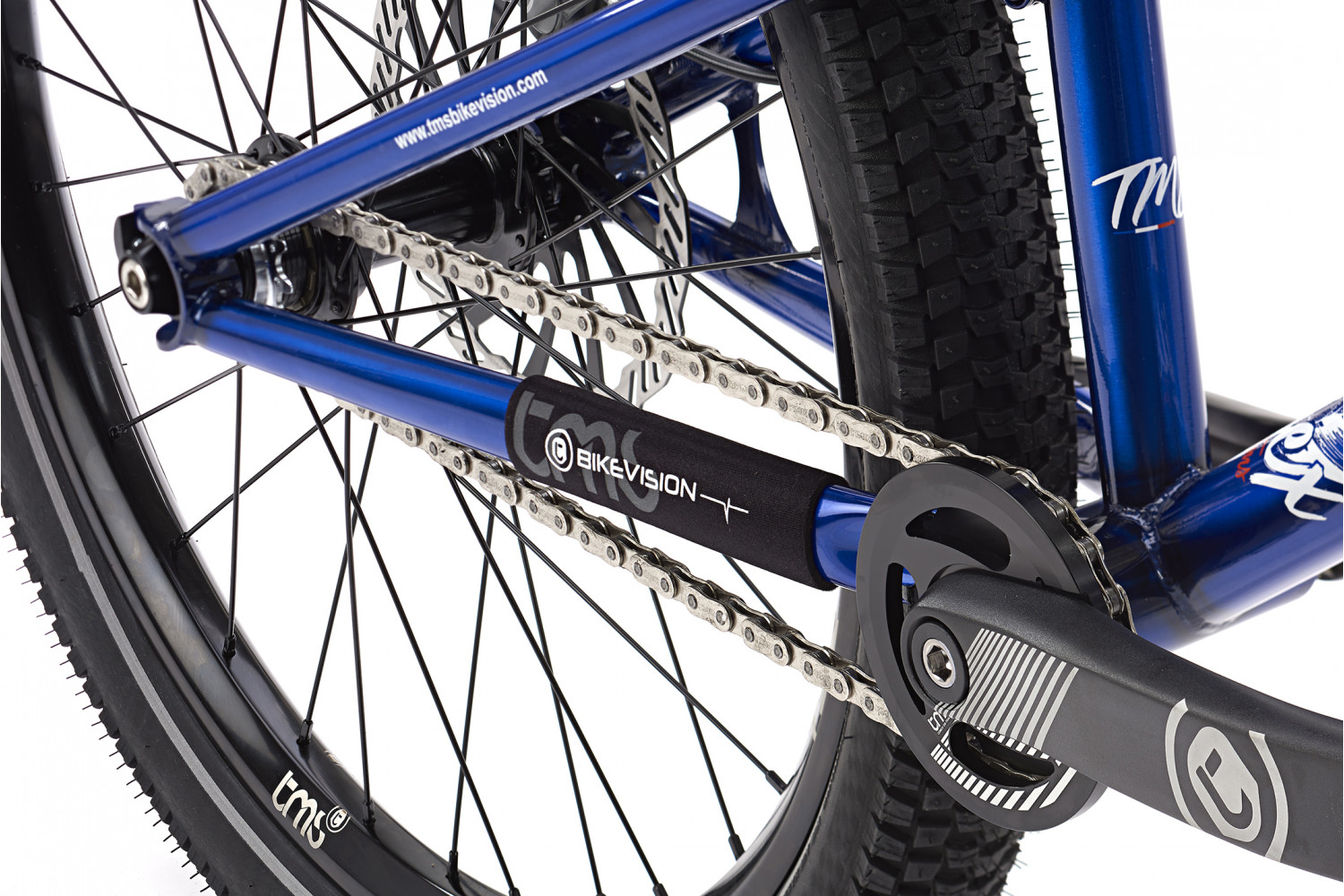

Transmission
- Bottom bracket: TMS 128 ISIS Drive
- Cranks: TMS 170mm, black (new)
- Freewheel: TMS 18T, 78 pawls
- Freewheel protector: new series graphics
- Pedals: Welgo aluminium
- Chain: YBN 1/2″ x 3/32″
- Saddle: TMS Full Nylon (new design)
Wheels
- Front hub: TMS Disc Black 32H, 15mm thru axle, sealed bearings (new)
- Rear hub: TMS 135 Disc Black 32H, sealed bearings (new)
- Rear sprocket: 13T threaded
- Rims: double-walled, black anodized
-
Tires (depending on variant):
- Maxxis Holy Roller 24×2.4 (Magura MT5 version)
-
Continental Air King MacAskill (Magura MT7 version)
Geometry
- Wheelbase: 980mm
- Chainstay: 360mm
- Bottom bracket height: +22mm
- Head angle: 74.5°
Technical Specifications
- Seat tube Ø: 25.4mm
- Bottom bracket: 68mm
- Rear hub spacing: 135mm
-
Weight: approx. 10.6 kg (varies by configuration)
Color
Deep Blue Clearcoat – transparent finish showing natural heat-treated steel tones
