Inspired Fourplay SE Frame Kit

Description

Precision, Strength & Trials Heritage

The Inspired Fourplay SE Frame Kit is built for riders who demand absolute control, durability, and refined geometry in a 24” trials-inspired platform. Designed by Inspired Bicycles, this SE edition combines premium components, proven geometry, and standout aesthetics in a Satin Bronze finish with Gloss Chrome Blue graphics.

This frame kit comes fully equipped with Inspired Fourplay tapered forks and high-end Industry Nine Hydra 2 hubs, delivering exceptional engagement, stiffness, and reliability. Whether you’re riding street, park, or technical trials lines, the Fourplay SE offers a responsive and confidence-inspiring ride.

Key Features

• Inspired Fourplay 24” frame with 12mm bolt-through rear axle
• Matching Inspired Fourplay tapered forks with 20mm bolt-through axle
• Premium Industry Nine Hydra 2 hubs front & rear (UK RRP hubs value £680)
• Optimized geometry for balance, manuals, and technical precision
• Lightweight yet robust construction – only 3.81kg including hubs

Frame Kit Contents

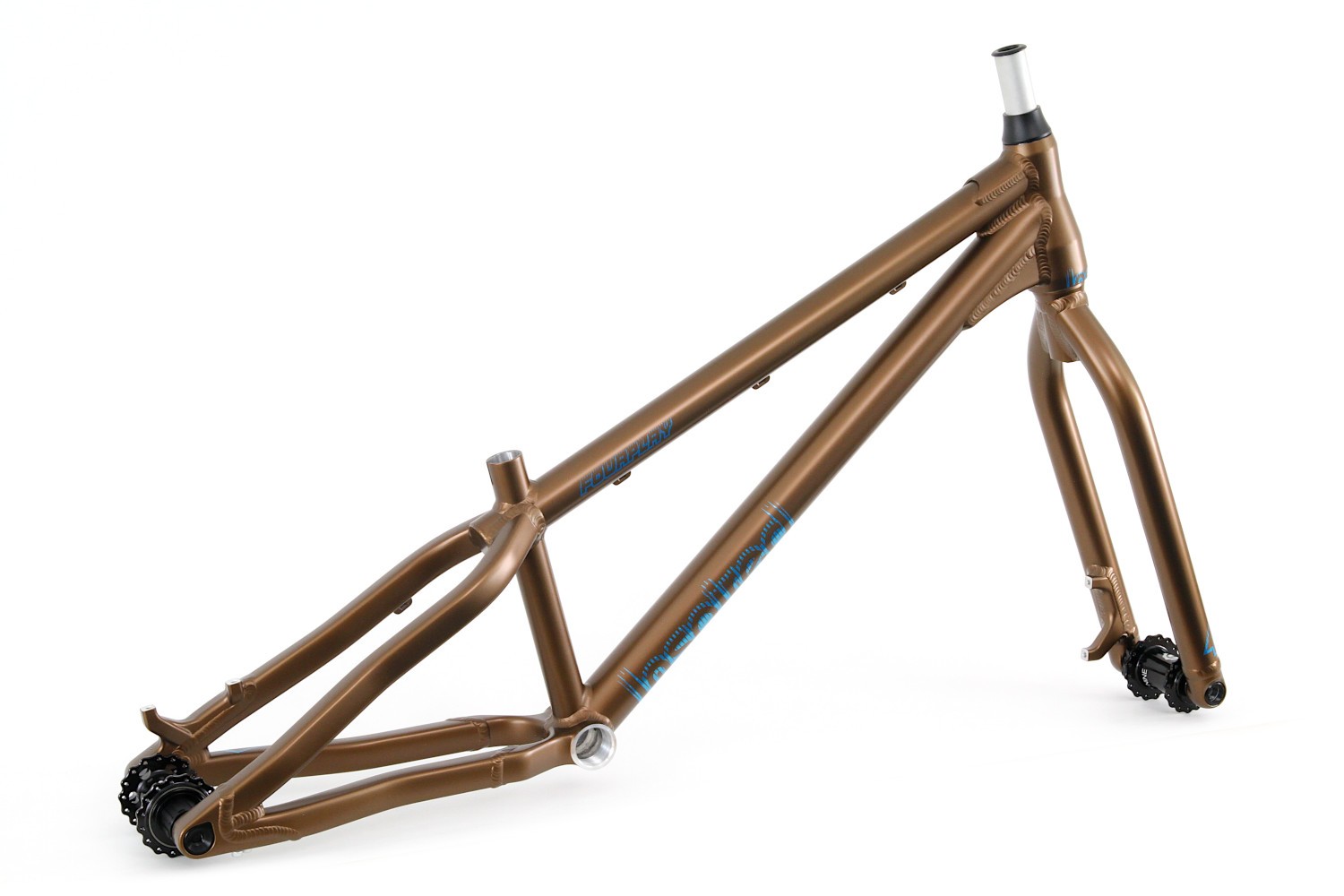

• Frame: Inspired Fourplay 24″, 12mm bolt-through axle, Satin Bronze

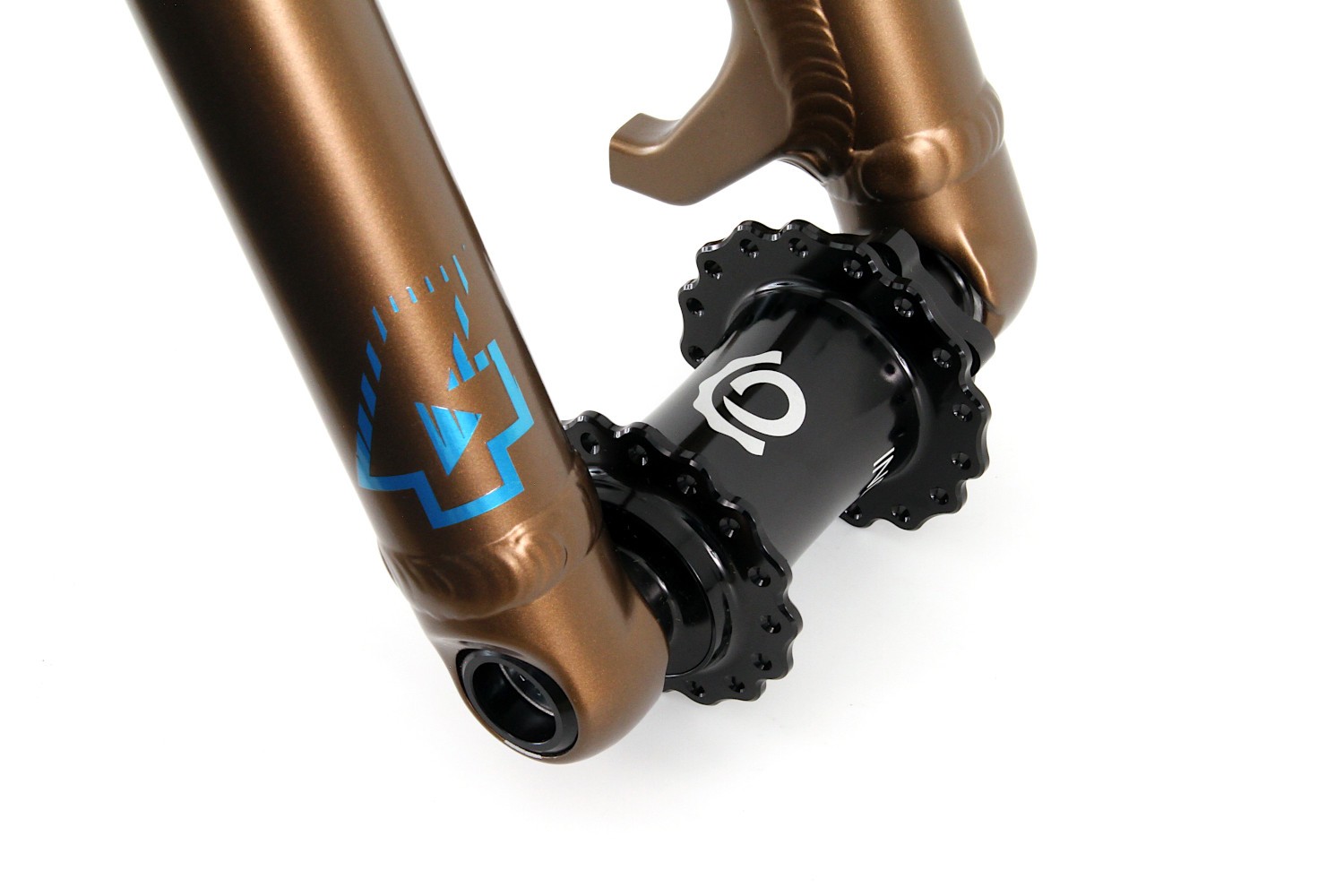

• Forks: Inspired Fourplay, tapered 1.5″ steerer, 20mm axle
• Headset: FSA Integrated (1-1/8″ upper, 1.5″ lower), Satin Black
• Tensioner: Inspired Team Sprung, Black
• Front Hub: Industry Nine Hydra 2 6B, 20mm, 32h, 110mm
• Rear Hub: Industry Nine Hydra 2 SS 6B, 12mm, 32h, 135mm

Geometry

• Wheelbase: 988mm
• Chainstay: 362mm
• BB Height: +15mm
• Head Angle: 74°

Technical Specifications

• Seatpost: 27.2mm
• Seat Clamp: 31.8mm
• BB Shell: 73mm
• Tyre Clearance: Up to 24 x 2.7″
• Headtube: Tapered Integrated (1-1/8″ – 1.5″)
• Dropouts: 12mm bolt-through, 135mm spacing
• Chainline: 51mm (minimum with 22T chainring)
• Disc Mount: +20mm Post Mount (max 185mm rotor)

Included Bonus

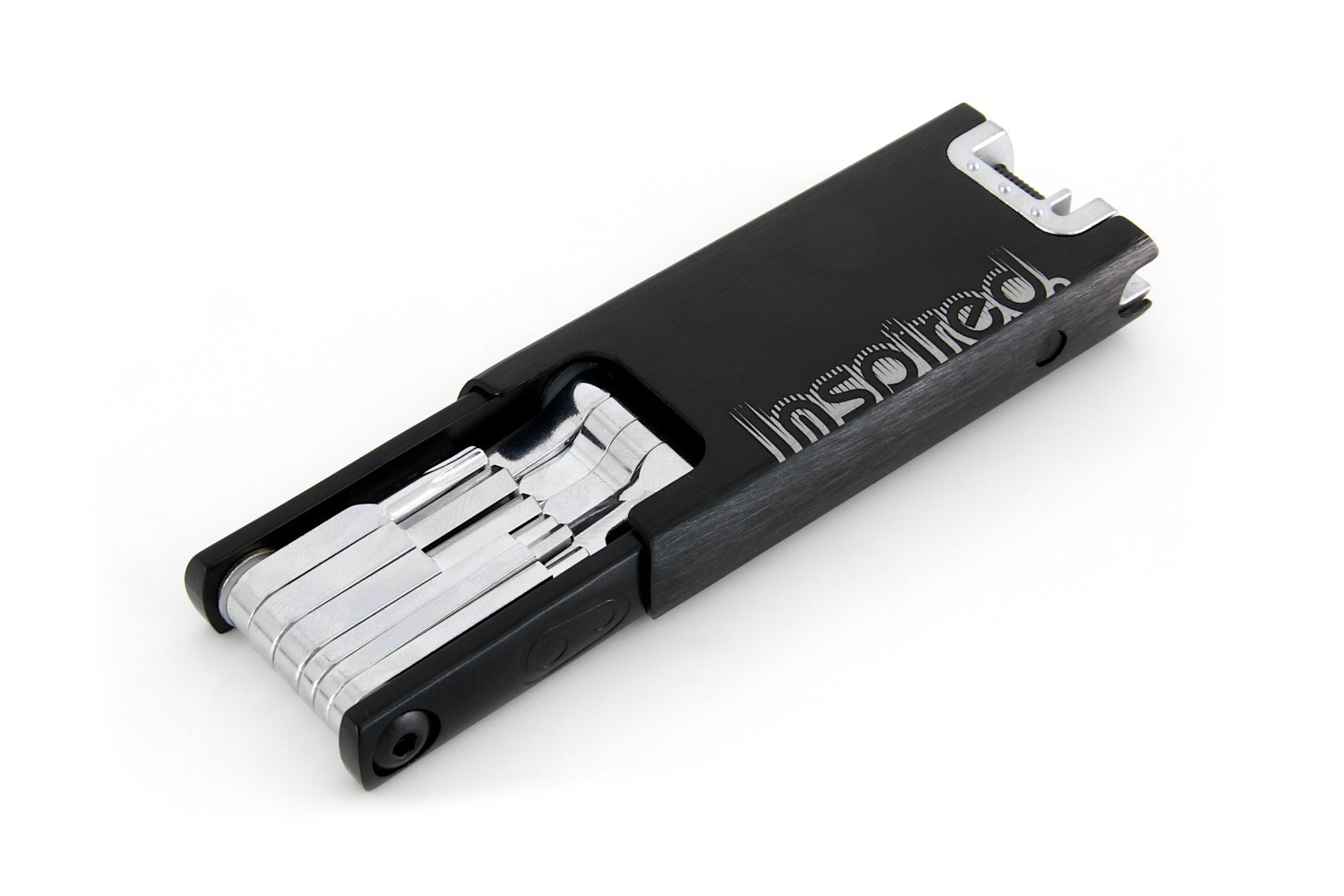

Supplied with a custom Crankbrothers F15 multi-tool, housed in a unique laser-etched Inspired presentation case.

Documentation

• 20mm Fork Axle Assembly Instructions
• 12mm Frame Axle Assembly Instructions
• Team Sprung Tensioner Instructions

Please Note:
Ensure axles are clean, undamaged, and generously greased before installation. Failure to follow the official axle assembly instructions may invalidate the warranty.
