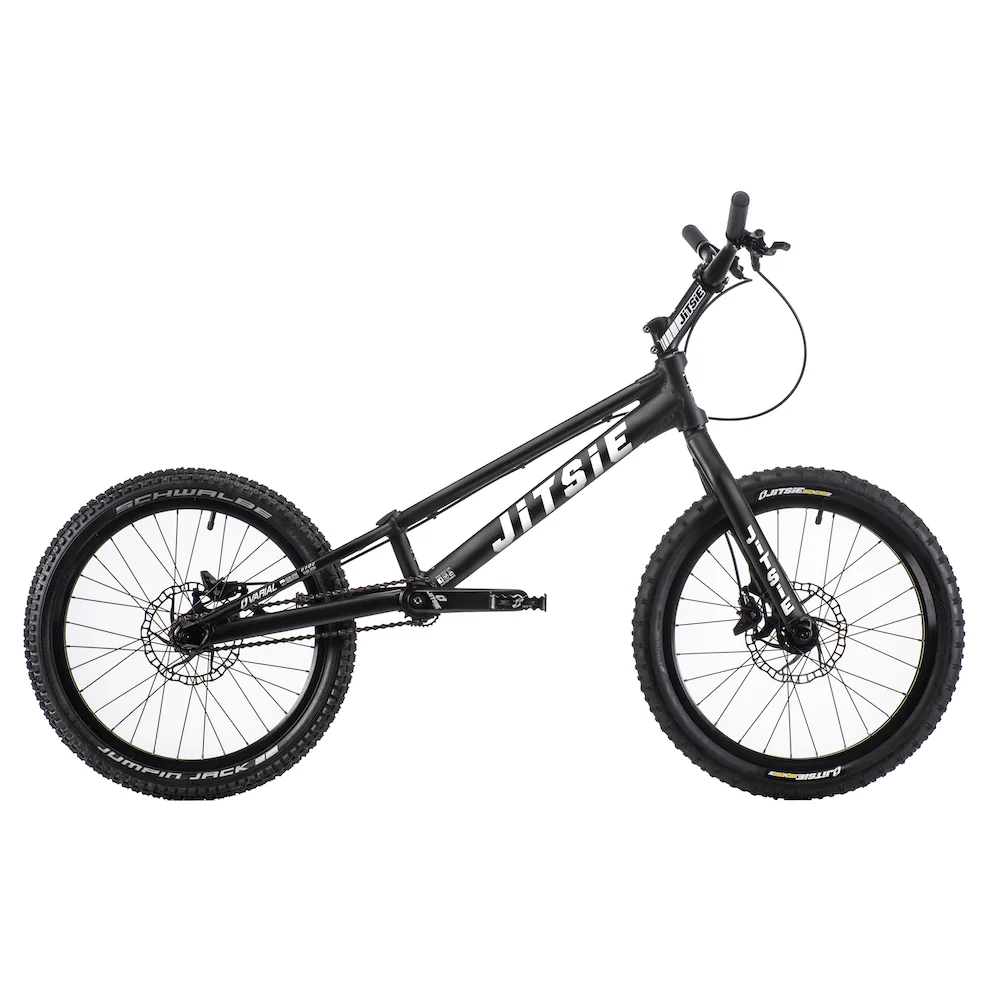

Jitsie Varial 20″ Bike 920mm

Description

Taking innovation to the next level in trials, the Varial bike reflects Jitsie’s 100% focus on trials. The unity of quality manufacturing and functional minimalist design result in a performant and durable bicycle that makes it the choice for any trial rider.

FRAME KIT

• frame: Jitsie Varial 920mm disc
• fork: Jitsie Varial 350mm disc 1 1/8″

FEATURES FRAME

• manufactured from aerospace 6061-T6 aluminum
• minimalistic design with a focus on performance and durability
• 110mm high CNC machined head tube designed for semi-integrated headset
• 68mm wide bottom bracket shell for ISIS bottom bracket
• CNC machined post-mount rear disc brake support suitable for 160/162mm brake disc includes integrated rear dropout for increased strength
• CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
• sandblasted and black anodized finish with Jitsie graphics
• frame comes supplied with a lightweight silicon seat plug
• the frame allows for the Jitsie aftermarket seat to be installed

GEOMETRY

• wheelbase: 920mm
• chainstay length: 350mm
• bottom bracket height: 55mm
• headtube: 110mm
• headtube angle: 71.5°

(geometry based on Jitsie Varial fork 350mm and +45mm offset)

WHEELS

• hub front/rear: Jitsie 100mm disc 28h black / Jitsie 116mm disc 32h black
• rim front/rear: Jitsie 20″ 32mm 28h black / Jitsie 19″ 48mm 32h black
• spokes/nipples: inox 1.8mm black / aluminum black
• tyre front / rear: Jitsie Reverz 20″x2.0 / Jitsie Reverz 19″x2.6
• tubes: Jitsie 20″ light 0.9mm

COMPONENTS

• headset: Jitsie semi-integrated 1 1/8″
• headset spacer: Jitsie 5mm aluminum black
• stem: Jitsie 135mm 35° with flat stem cap black
• handlebar: Jitsie 31.8mm 640x80mm aluminum black
• grips: foam
• front brake/disc: Shimano MT400 / 160mm
• rear brake/disc: Shimano MT400 / 160mm

DRIVETRAIN

• bottom bracket: Jitsie ISIS 118mm steel
• cranks: Jitsie 160mm black
• pedals: Jitsie caged black
• freewheel: Jitsie 108.9 17t
• protector: Jitsie bash plate black
• sprocket: Jitsie steel 13t
• chain: KMC Z1eHX Narrow
• chain tensioner: Jitsie aluminum/steel snail cams

WEIGHT

• 7.90kg including pedals
