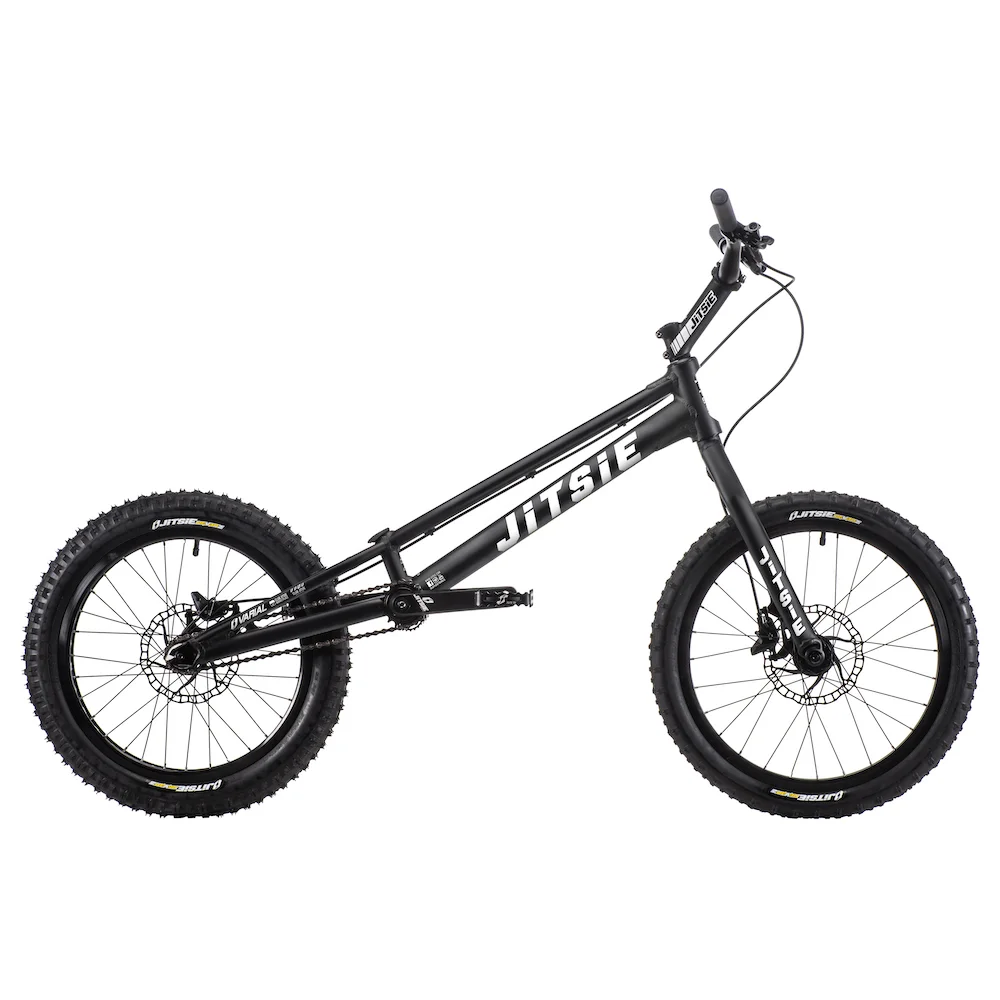

Jitsie Varial 20″ Bike 970MM Disc/Disc

1.100,00

Taking innovation to the next level in trials, the Varial bike reflects Jitsie’s 100% focus on trials. The unity of quality manufacturing and functional minimalist design result in a performant and durable bicycle that makes it the choice for any trials rider.

Description

Taking innovation to the next level in trials, the Varial bike reflects Jitsie’s 100% focus on trials. The unity of quality manufacturing and functional minimalist design result in a performant and durable bicycle that makes it the choice for any trials rider.

FRAME KIT

  • frame: Jitsie Varial 970mm disc
  • fork: Jitsie Varial 370mm disc 1 1/8″

FEATURES FRAME

  • manufactured from aerospace 6061-T6 aluminum
  • minimalistic design with a focus on performance and durability
  • 120mm high CNC machined head tube designed for semi-integrated headset
  • 68mm wide bottom bracket shell for ISIS bottom bracket
  • CNC machined post-mount rear disc brake support suitable for 160/162mm brake disc includes integrated rear dropout for increased strength
  • CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
  • sandblasted and black anodized finish with Jitsie graphics
  • frame comes supplied with lightweight silicon seat plug
  • the frame allows for the Jitsie aftermarket seat to be installed

GEOMETRY

  • wheelbase: 970mm
  • chainstay length: 350mm
  • bottom bracket height: 80mm
  • headtube: 120mm
  • headtube angle: 71.5°

(geometry based on Jitsie Varial fork 370mm and +45mm offset)

WHEELS

  • hub front / rear: Jitsie 100mm disc 28h black / Jitsie 116mm disc 32h black
  • rim front / rear: Jitsie 20″ 32mm 28h black / Jitsie 19″ 48mm 32h black
  • spokes / nipples: inox 1.8mm black / aluminium black
  • tyre front / rear: Jitsie Reverz 20″x2.0 / Jitsie Reverz 19″x2.6
  • tubes: Jitsie 20″ light 0.9mm

COMPONENTS

  • headset: Jitsie semi-integrated 1 1/8″
  • headset spacer: Jitsie 5mm aluminum black
  • stem: Jitsie 135mm 35° with flat stem cap black
  • handlebar: Jitsie 31.8mm 700x90mm aluminium black
  • grips: foam
  • front brake / disc: Shimano MT400 / 160mm
  • rear brake / disc: Shimano MT400 / 160mm

DRIVETRAIN

  • bottom bracket: Jitsie ISIS 118mm steel
  • cranks: Jitsie 160mm black
  • pedals: Jitsie caged black
  • freewheel: Jitsie 108.9 17t
  • protector: Jitsie bash plate black
  • sprocket: Jitsie steel 13t
  • chain: KMC Z1eHX Narrow
  • chain tensioner: Jitsie aluminum/steel snail cams

WEIGHT

  • 7.95kg including pedals

Additional information

Weight 8 kg
