Description

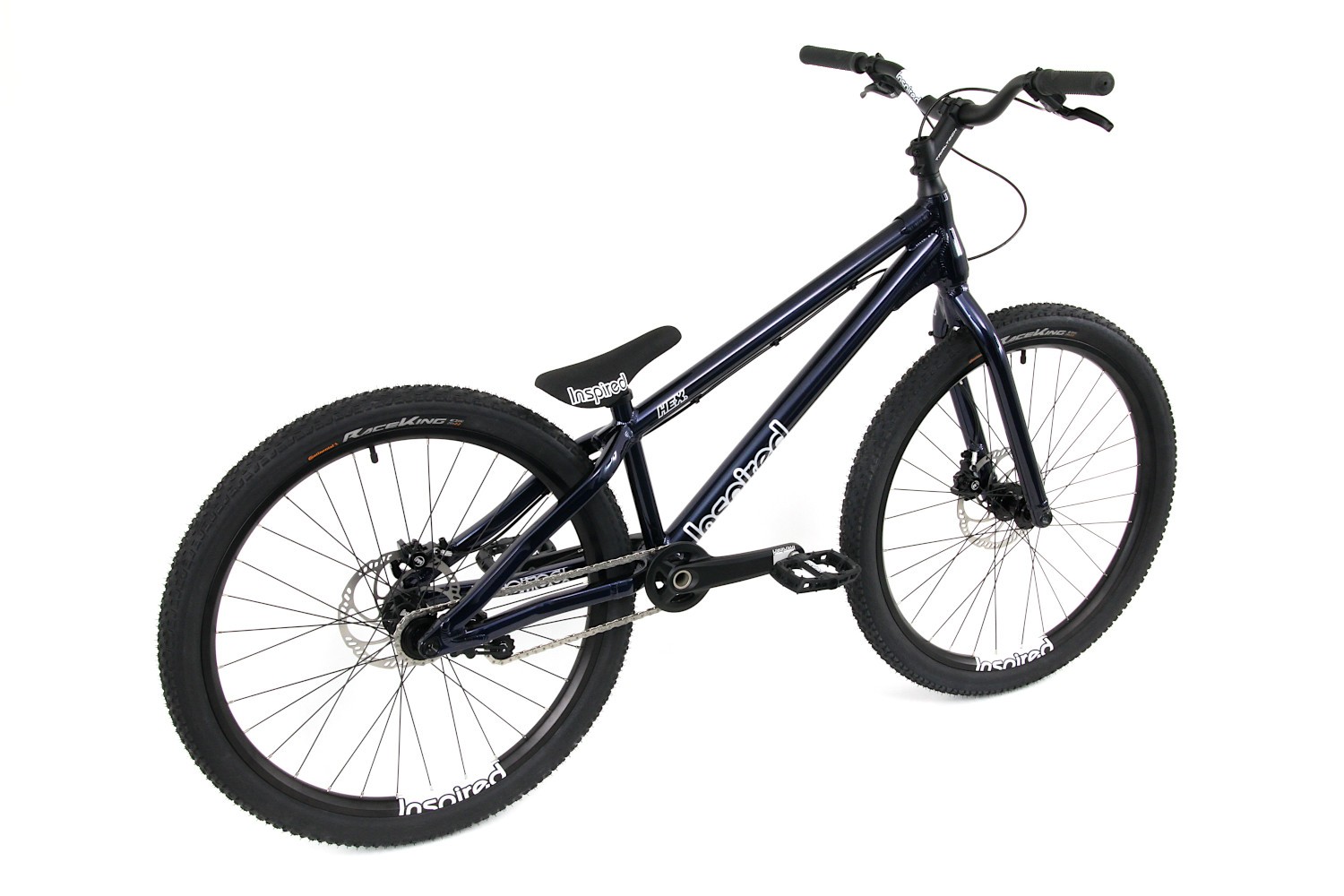

The Hex design and geometry allow riders to benefit from the compact and maneuverable geometry of our famous 24″ frames, but with the associated benefits that come with 26″ wheels (such as increased stability and familiarity for traditional MTB riders).

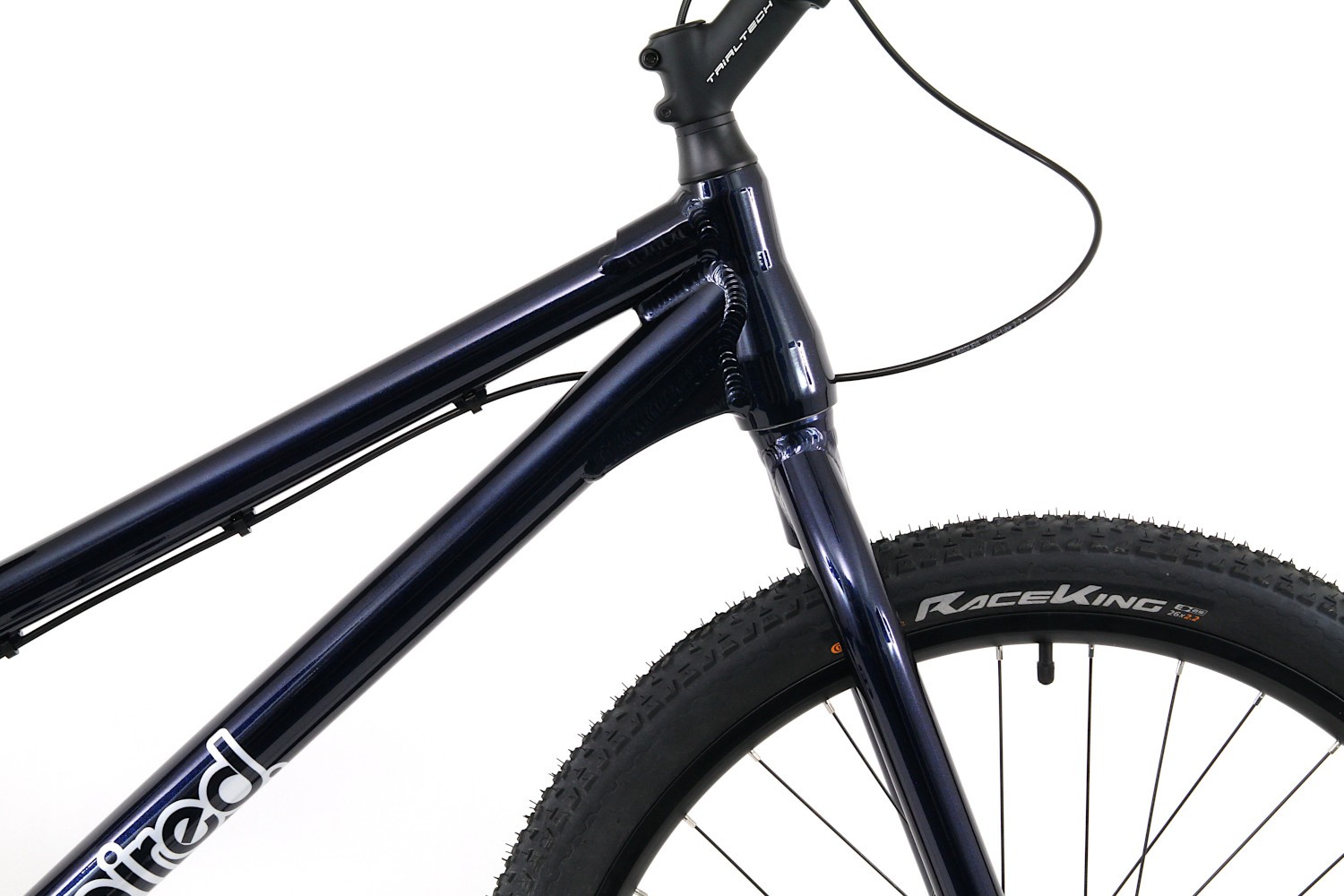

The front of the frame features an upgraded butted tube set to help increase strength even further and is complemented by using external top and down tube gussets. An all-new integrated tapered head tube allows for increased weld contact area with the down tube to increase durability further.
The Hex features a hollow bottom bracket and chainstay yoke designed to offer excellent clearance for both the tire and the chainring. The custom design increases stiffness and strength at this important area and the internal CNC machining means the weight has been reduced significantly. A 12mm bolt-through axle, which screws into a custom tapered insert within the frame dropout, ensures that everything stays in place no matter what you throw at it.
The frame and fork feature reinforced Post Mount disc brake mounts (maximum rotor size 185mm) thereby removing the need for additional brake caliper adaptors. The rear of the bike features an exclusive design seat and chainstay tubing to improve crank and heel clearance. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength. The custom-shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.

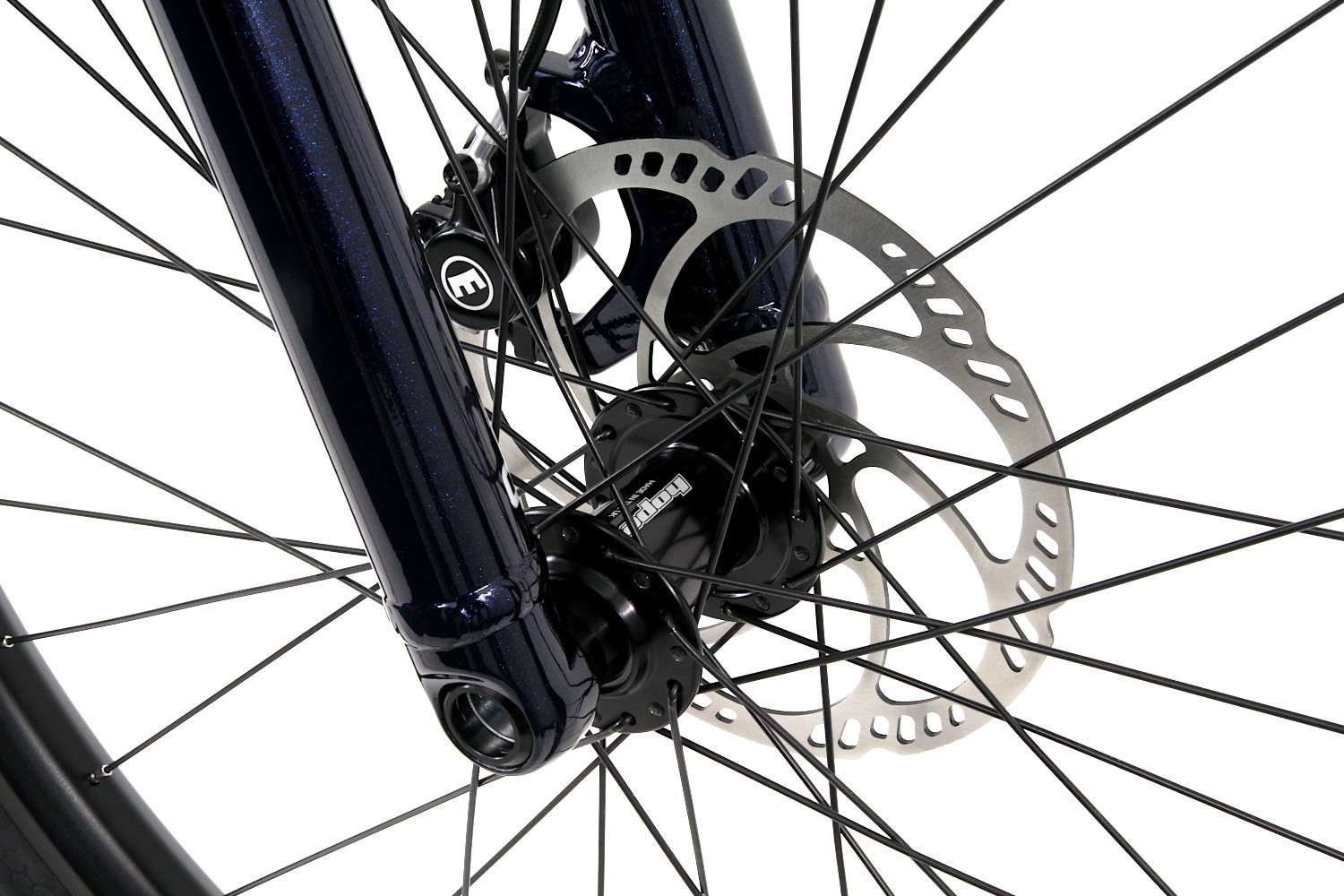

The Hex Pro fork features a tapered steerer and innovative crown construction for improved durability and reduced weight. A 15mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. Furthermore, increased tire clearance at the fork crown area gives better clearance when routing the front brake hose through the steerer tube (via the custom screw-in top cap). The Hex Pro 26″ complete bike is built with a range of top-quality Inspired, Trialtech, and Truvativ products. Up front is an Inspired Pro riser bar with a Trialtech stem and FSA taper headset. Custom Inspired Pro crankset with integrated bashring, KMC chain, Inspired Pro composite platform pedals, and a Sport Single-Sided sprung chain tensioner provide a tough and dependable drive set. Available as standard with Magura MT4 brakes, braking is powerful but easily controlled. The wheels use Inspired Pro V2 rims built onto a pair of Inspired’s super-smooth bolt-through disc hubs front and rear with Maxxis Holy Roller or Continental tires.
Also available with Hope Tech 3 – Trial Zone, Magura MT7 HC3, or NEW Hope Tech 4 – Trial Zone brake upgrade packages*. Available in Satin Yellow or Satin Green/Purple. Customer rating: 5/5
Suggested height: 1.60m/5ft 3in – 2.00m/6ft 6in
Technical Data
Frame
– Frame: Inspired Hex 26″, 6066-T6 aluminum alloy, Satin Yellow or Satin Green/Purple
Compatibility
– Through axle: 135 x 12mm
– Bottom bracket: 73mm BSA
– Headset type: Integrated 1 1/8″ Upper/1.5″ Lower
– Seat tube diameter: 27.2mm
– Brake mount: 180 Post Mount
Fork
– Inspired Hex Pro, Tapered Steerer Tube, 15mm Bolt Through Axle, Satin Yellow or Satin Green/Purple
Compatibility
– Steerer tube: 1 1/8″ to 1.5″ tapered
– Through axle: 100 x 15mm
– Brake mount: 180 Post Mount
Brakes
– Brakes: Magura MT4, 180mm Storm HC Rotors
Optional Upgrades*
– Hope Tech 3 Trial Zone, 180mm Trial Zone V2 Rotors
– Magura MT7 HC3, 180mm Storm HC Rotors
– NEW Hope Tech 4 Trial Zone, 180mm Trial Zone V2 Rotors
Drivetrain
– Cranks: Inspired Pro Integrated 24mm, 175mm, Satin Black
– Front Sprocket: 22T Inspired Pro Integrated, Black
– Chain: KMC Z1eHX-N
– Rear Sprocket: Trialtech Sport 18T, 72 engagement
– Pedals: Inspired Pro Composite Sealed Bearing Platform, Black
– Bottom Bracket: Inspired Pro 24mm, Black
– Bashring: Inspired Pro Integrated, Satin Black
Wheels
– Front Hub: Inspired Disc V2, 15mm bolt through axle, 32h, 100mm wide, Satin Black
– Rear Hub: Inspired Disc V2, 12mm bolt through axle, 32h, 135mm wide, Satin Black
– Chain Tensioner: Trialtech Sport Single-Sided Sprung, Black
– Rims: Inspired Pro V2 Disc, 26″, Satin Black
– Tyres: Maxxis Holy Roller 26 x 2.4″ or Continental Gravity 26″ x 2.3
Steering
– Headset: FSA, 1-1/8″ Integral Upper, 1.5″ Standard Lower, Satin Black
– Stem: Trialtech Sport, 90mm x 35˚, Satin Black
– Grips: Lizard Skins ‘MacAskill’ Rubber, Black
– Handlebars: Inspired Pro Riser, Satin Black
Seating
– Saddle: Inspired Integrated Kevlar, Black
– Seatpost: Integrated Alloy
– Seat Clamp: Inspired, 31.8mm, Black
Geometry
– Wheelbase: 1023mm
– Chainstay: 380mm
– BB Height: +20mm
– Head Angle: 73.5˚
Weight
– 11.42kg (including pedals and Magura MT4 brakes)
* Please note: Additional costs apply.
